mPass administration Portal

Introduction

The mPass authentication server is an OATH compliant comprehensive solution for enabling multi-factor authentication for enterprise applications such as VPN Systems, Outlook Web Access, Active Directory Federation Services, Windows/Linux systems or any in house developed applications. mPass authentication server enables strong authentication via OATH based One Time Passwords (OTP) via SMS, Mobile Authenticator apps, emails and Push authentications.

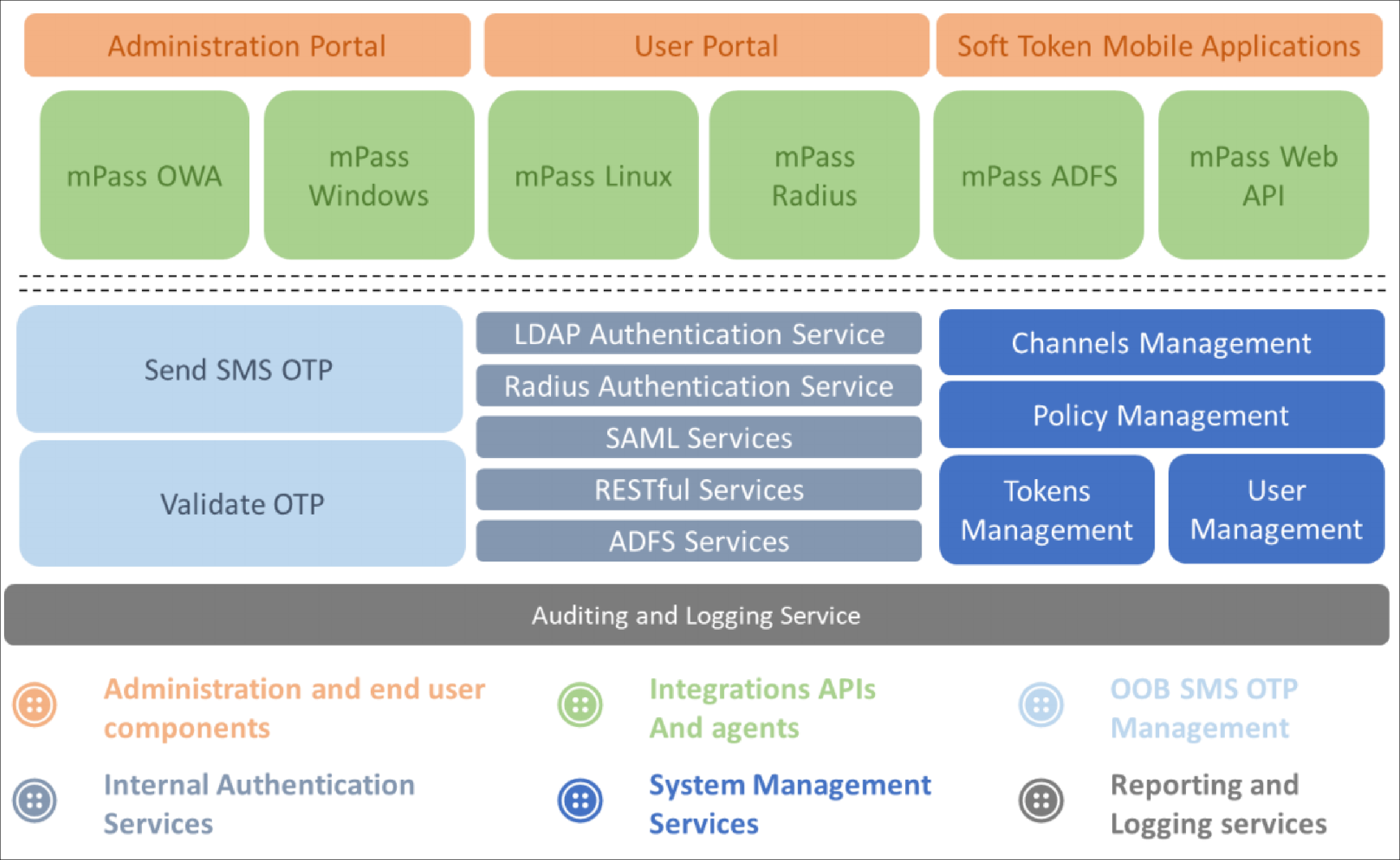

Application Overview

mPass authentication server (AS) is an enterprise system which can be integrated with multiple systems for enabling Two-Factor authentication via OTP’s.

Application Components

Administration Portal

The administration portal is a web-based application bundled along the mPass server which can be used to administer the whole mPass system. Administrative functions such as defining policies, channels, users’ management, tokens Management, Notification gateway configuration system parameters management etc.

User Portal

The User Portal is another web application bundled along the mPass server (optionally) used by corporate directory users who wish to activate the mPass Mobile Tokens /Apps (from Apple iOS and Google Play stores). Users can also test the OTPs generated on their mobile phones using the portal.

Mobile Applications

mPass provides mobile applications for users to generate OTPs. Users can activate the mobile app from the mPass user portal or using QR Codes received via email. mPass supports mobile apps from Apple iOS and Google Play stores.

Web based API’s

mPass provides HTTP RESTful based web services for custom in-house enterprise applications to enable two factor authentication. Applications can leverage the mPass webservices and integrate into the existing authentication workflow.

LDAP Authentication Service

This service is used to integrate mPass with Enterprise Directory services via Light Weight Directory Access Protocol (LDAP) to verify authentication credentials of user and to read user information like Mobile Number and IP address for users.

Notification Service

The mPass Notification Service is used to integrate primarily with LinQ2 SMS Gateway to send OTP via SMS and it can also be used to integrate with any other enterprise SMS Gateway by means of HTTP protocols.

Channels

Channels are used to control access to the Two Factor authentication services provided by mPass. The administrator needs to define a channel for every enterprise system (VPN, OWA, ADFS and Webservices) willing to integrate with mPass.

Policies

Policies are a set of rules to control the authentication workflow from various channels. Parameters like OTP validity and the user’s automatic registration can be controlled by means of policies.

Tokens

Tokens are the key components of the mPass system used to generate OTP’s for users. The Tokens Management section is used to import tokens and maintain tokens etc.

Users

The mPass system maintains the list of all users who are authenticated for 2 Factor. The user’s management module is used to import bulk users and maintain users.

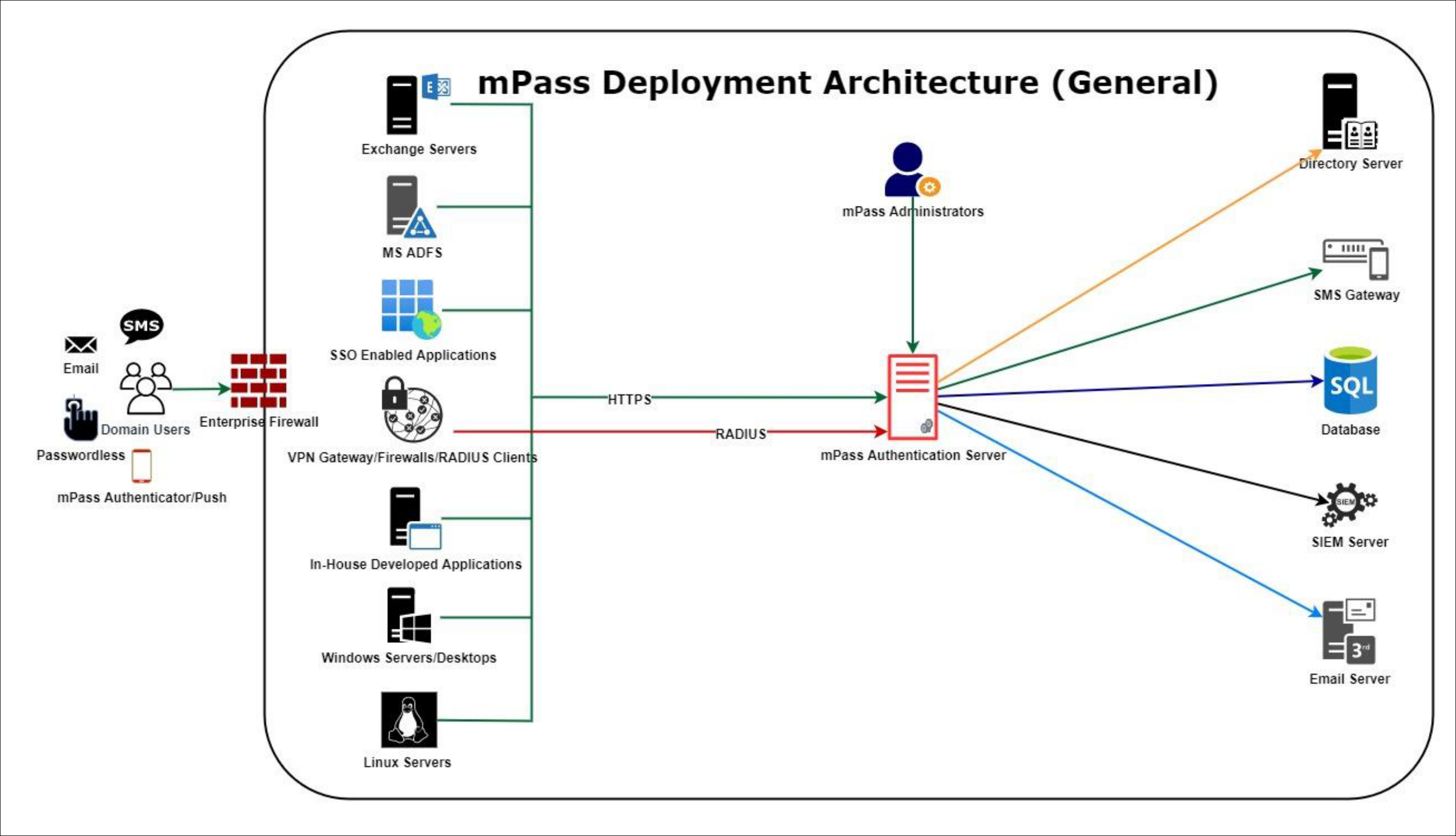

Integration Architecture

Following are the various systems which can be integrated with mPass:

Application Categories	Popular vendors
VPN	Pulse Secure Fortigate Cisco AnyConnect F5 Citrix PaloAlto
VDI	VMware Horizon
Email	Exchange(OWA)
Windows	Windows Servers(2008,2012,2019) Windows Desktop(7,8.1,10)
Linux	Redhat Ubuntu CentOS
SSO	Microsoft ADFS
Custom Applications	Any in-house developed applications

Portal Access

After successful installation of mPass, the administration portal can be accessed from the following URL: https://<host_name or IP Address>/mpass-web

Users belonging to the following roles can have access to the administration portal.

Super administrators
Administrators and authenticators
Support
Operations

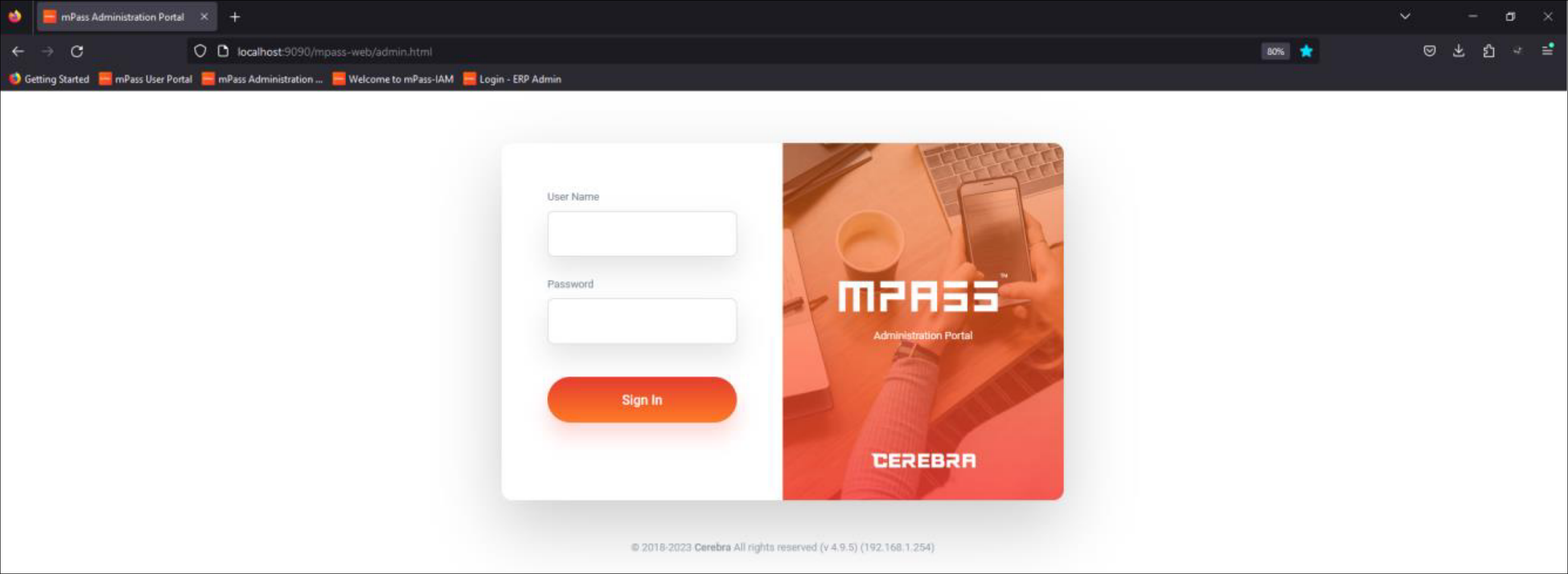

Below is the login page for the mPass administration portal.

Channels Management

Overview

Channels are used to control access from the MFA enabled applications such as VPNs, Outlook Web Access, Active directory federation services etc. for accessing the Authentication & Validation Services of the mPass.

The channels work in coordination with policies. Hence the administrator should define the policies first before defining the Channels. Channels can be defined for the following systems:

RADIUS (For RADIUS Clients, VPN's etc)
OWA/ADFS (For Outlook Web Access and Active Directory Federation Services)
WebService (For Custom developed applications)
MNV Webservice (For Mobile Number verification applications)
PKC Webservice (For mPass SSO, Windows and Linux)

List Channels

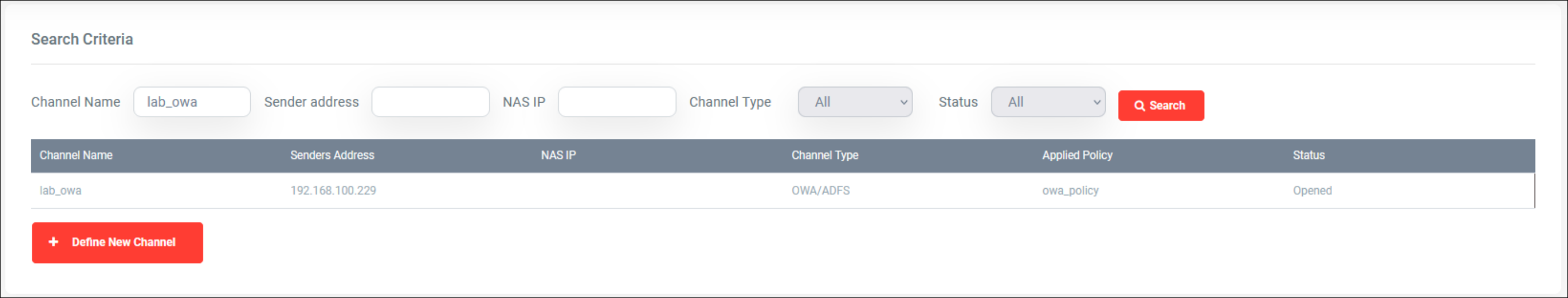

To view the defined channels list, the privileged user should navigate to the following path in the administration portal.

Home -> Channels -> List Channels

Define Channel

To define a new channel, privileged users can click the ‘Define New Channel’ button in the List Channels page or navigate to the following path:

Home -> Channels -> Define Channel

Following form will be displayed on the screen:

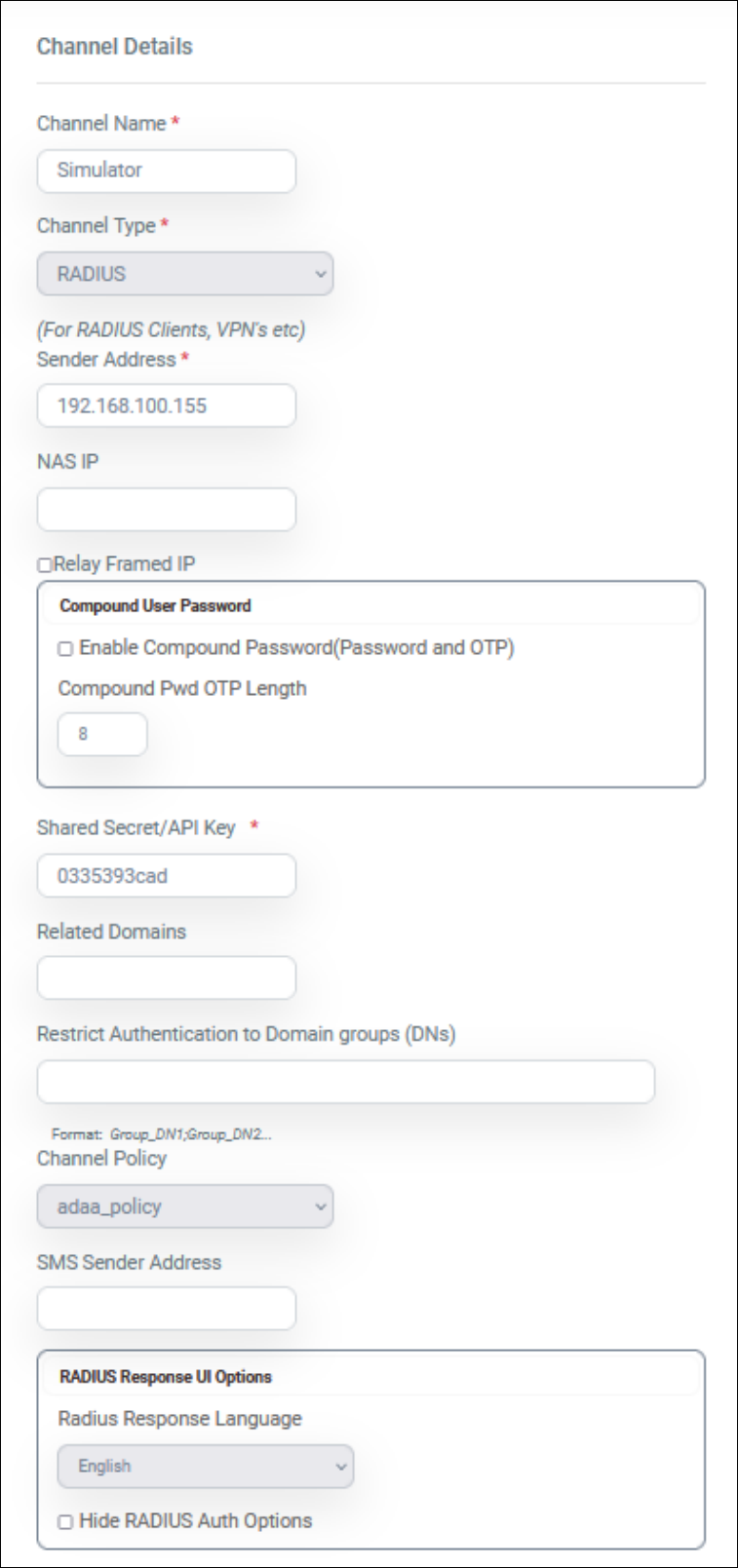

For RADIUS Channel Type:

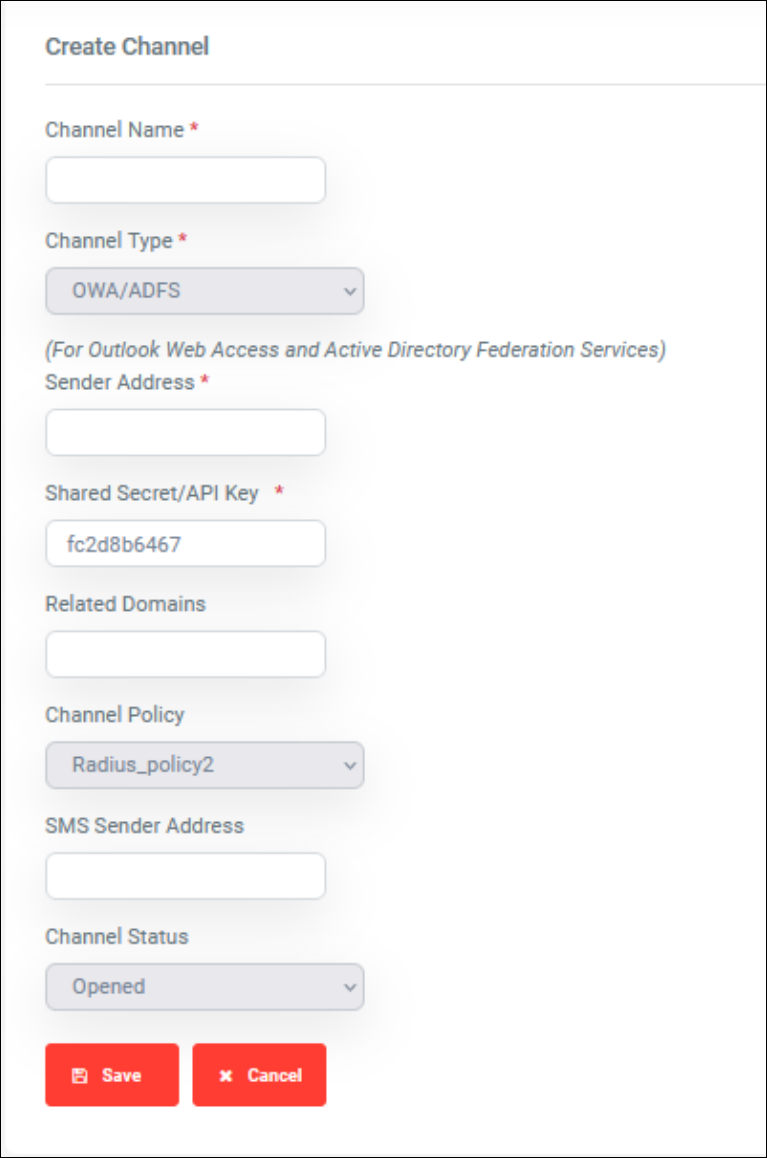

For OWA/ADFS:

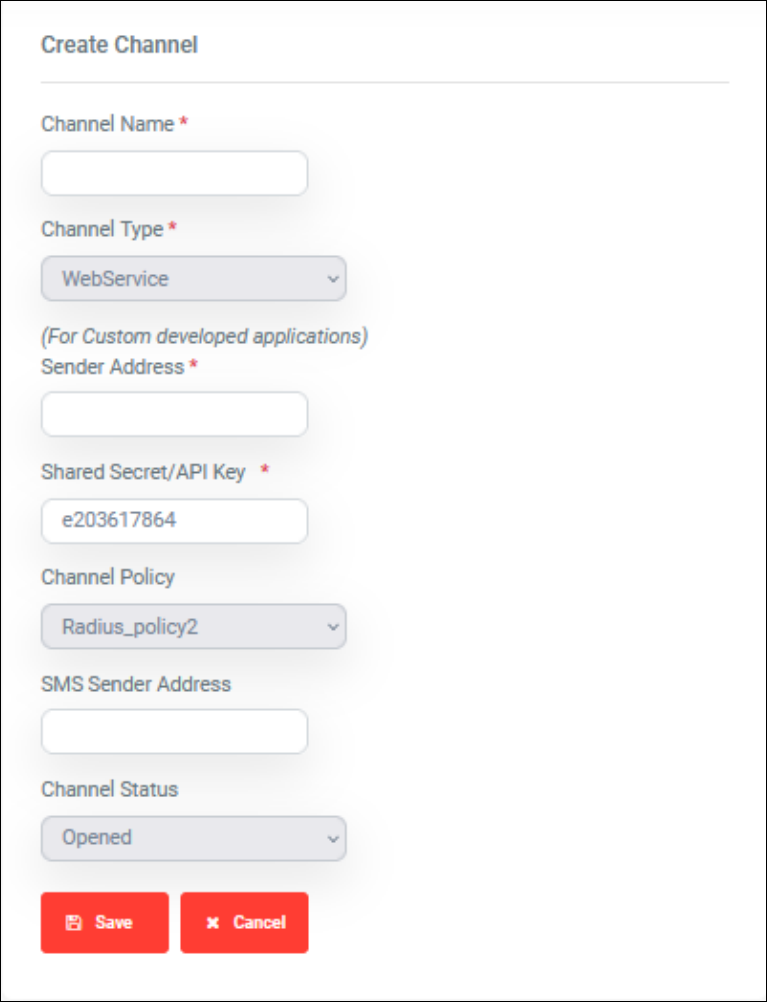

For Webservice:

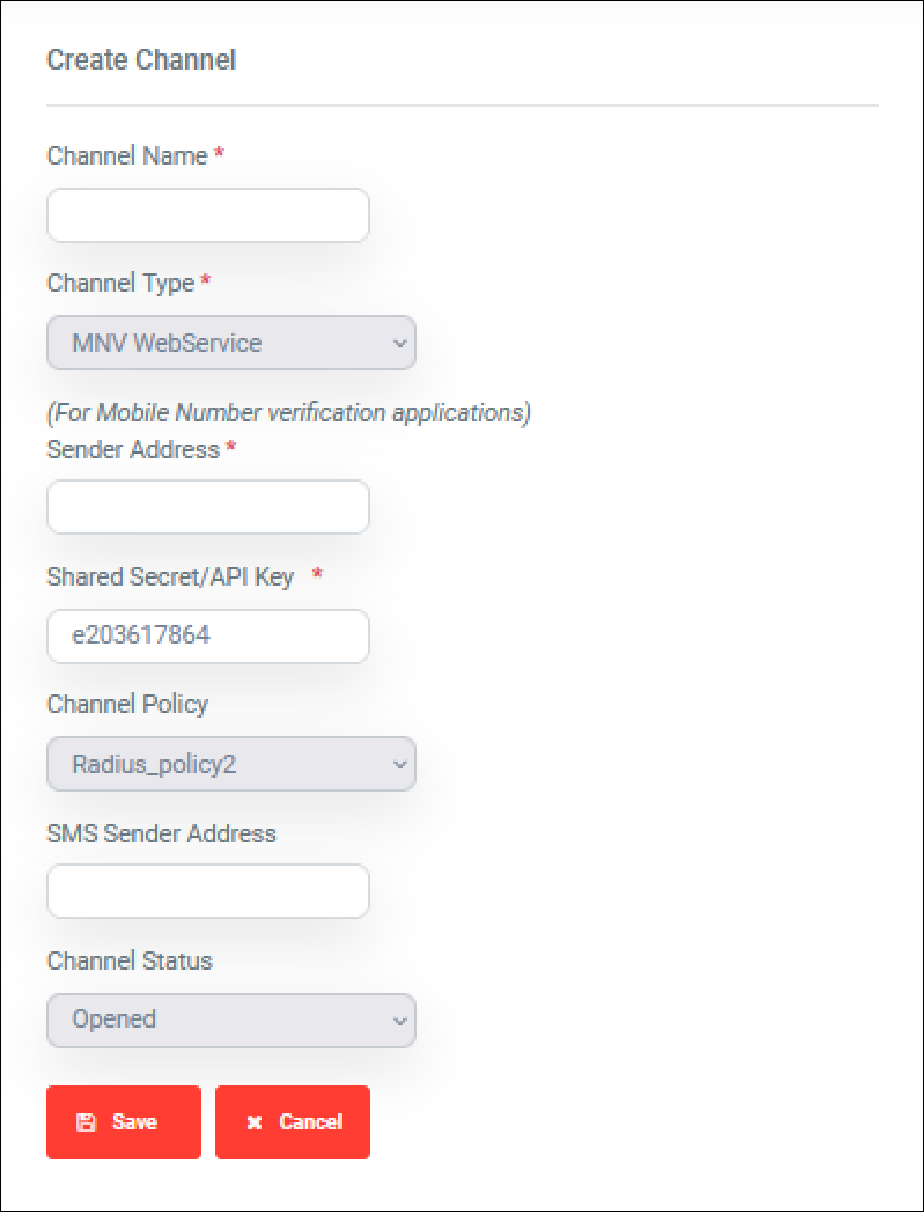

For MNV WebService:

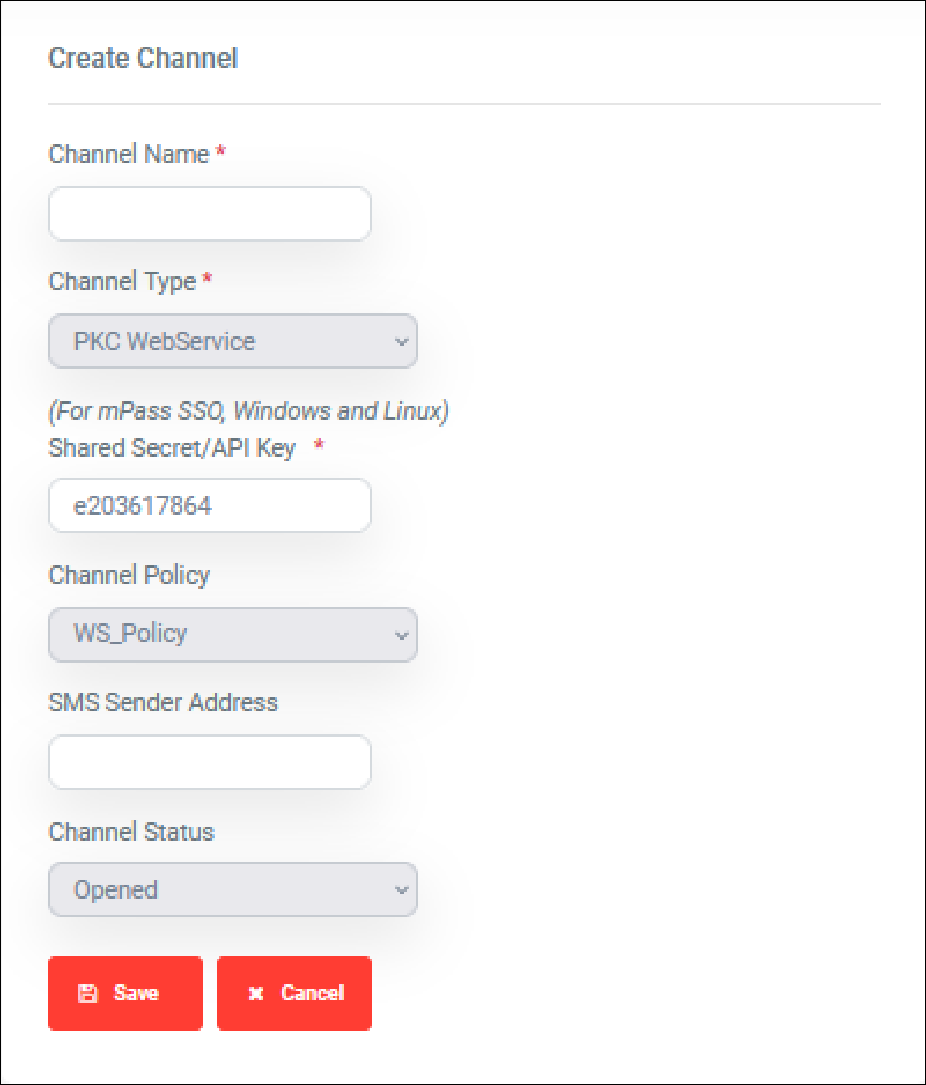

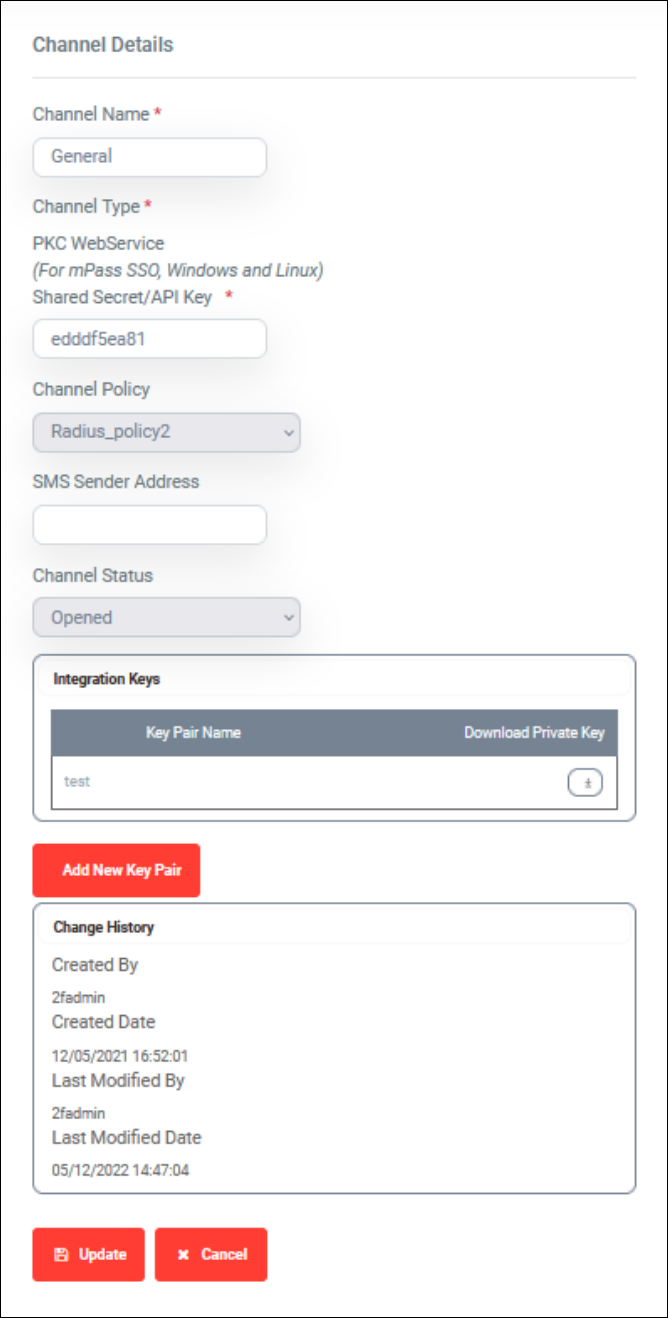

For PKC WebService

For PKC WebService, after creating the channel, to generate the Public Keys Cryptography (PKC) keys, the administrator has to open the channel details from the list page and click the Add New Key Pair button as shown below.

Following is the description of all the fields in the above form:

Parameter Name	Description
Channel Name	Any name to identify the channel
Channel Type	RADIUS/OWA/ADFS/WebService/MNV WebService/PKC WebService
Sender Address	IP address of the host requesting authentication (RADIUS Server’s/Exchange Servers, Application Servers etc)
NAS IP (Applicable only for RADIUS Channel Type)	RADIUS Network Access Server IP. If the senders packet contains the NAS IP the appropriate IP should be set here.
Relay Framed IP (Applicable only for RADIUS Channel Type)	Used to set the RADIUS attribute “Framed-IP-Address” in the response.
Enable Compound Password (Applicable only for RADIUS Channel Type)	Enabling will consider the password of the user to contain OTP at the end of normal password.
Compound Pwd OTP Length(Applicable only for RADIUS Channel Type)	The length of the OTP in the compound password
Shared Secret/API Key	Key for authentication between sender and mPass. A Random key will be generated for any new Channel Configuration definition.
Related Domain	During authentication process, the component will verify the user credentials in the domain specified here. If not, validates credentials across all the defined domains
Restrict Authentication to Domain groups (DNs)	Administrators can specify the Distinguished Names (DN) of directory groups to restrict access. Multiple groups can be specified separated via ; If not specified, no restrictions are applied.
Channel Policy	Policy (Refer Policies Management) to apply for the channel requests
SMS Sender Address	To set the SMS Sender for SMS based OTPs. Leaving empty will set from System configuration
RADIUS Response UI Options (Applicable only for RADIUS Channel Type)	To control the response messages, send to RADIUS Clients.
RADIUS Response Language (Applicable only for RADIUS Channel Type)	Language for displaying messages to users when using RADIUS based authentications
Hide RADIUS Auth Options (Applicable only for RADIUS Channel Type)	To hide/display various Authentication options such as( Enter 1 to send SMS, Enter 2 to Enter OTP via mobile…….)

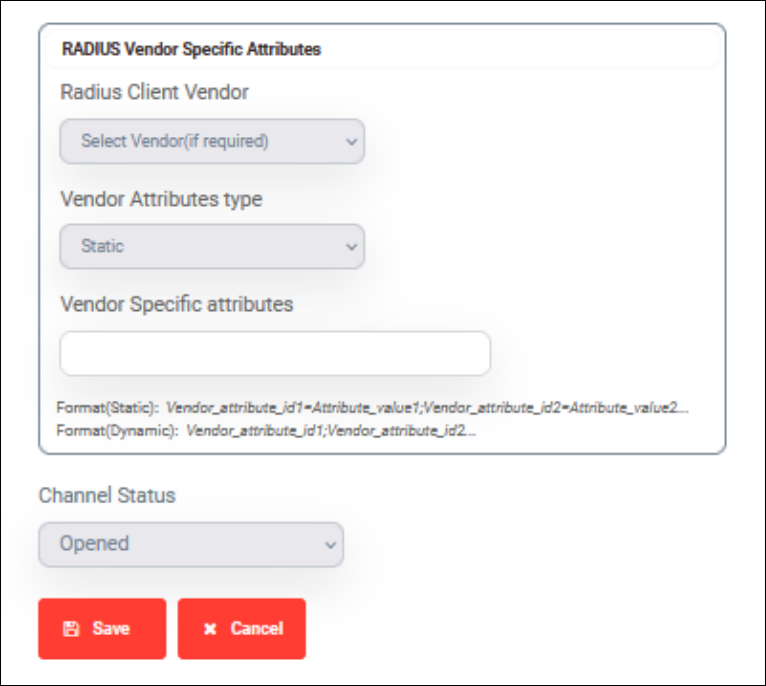

RADIUS Vendor Specific Attributes: This section applies for RADIUS channels only. mPass can return Vendor specific attributes in the ACCESS_ACCEPT RADIUS packet.

Currently, supported vendors are Citrix and Fortinet

RADIUS Client Vendor	Citrix/Fortinet
Vendor Attributes type	Static- Sets the vendor attribute value as mentioned in the Vendor Specific attributes field. Dynamic – Sets the vendor attribute based on the user group found in the directory server and which matches the first Restrict Authentication to Domain groups field value
Vendor Specific attributes	Should be specified 1 when field Vendor Attributes type is dynamic. Should specify 1=<attribute_value1>;2=<attribute_value2> if Vendor Attributes type is static
Channel Status	Opened- Will apply 2FA to the users Closed - will not enable 2FA for the channel. Requests will be rejected Disable MFA – Will not apply 2FA to the users

Modify Channel

Click on the appropriate channel defined for editing it from the List Channels Page. The following screen will be displayed.

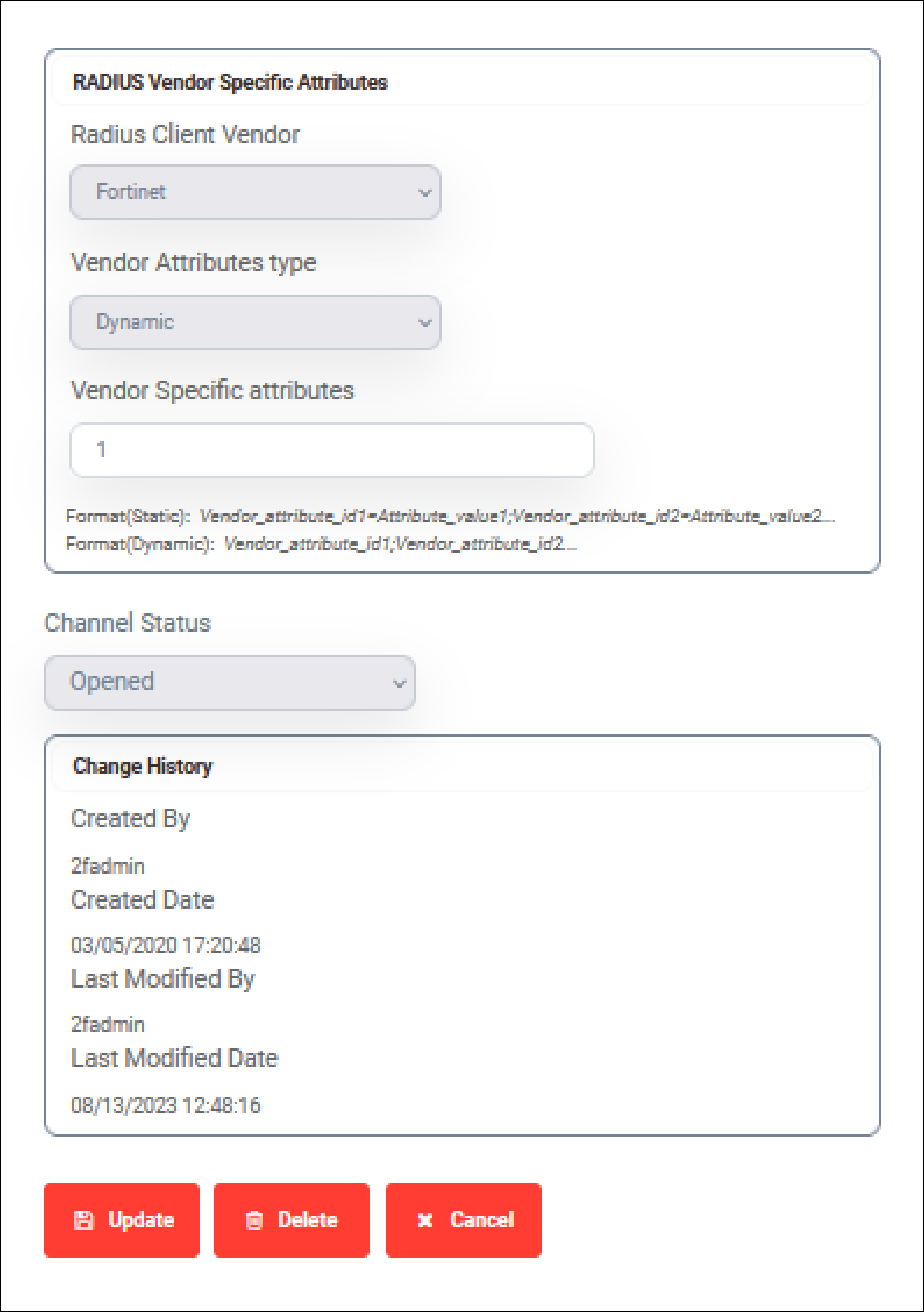

For Radius Channel Type:

After updating the required parameters, please click the Update button. The same procedure can be followed for other channel types.

Policies Management

Overview

Policies are used to control authentication and validation requests by means of various parameters. A policy defined can be used by any number of channels (See more details in Channels Management).

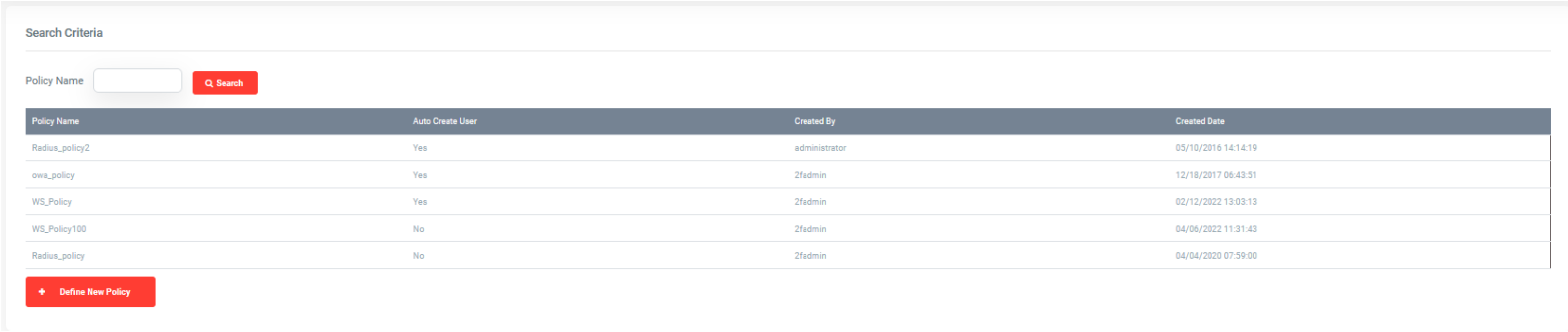

List Policies

To view the defined policies, the privileged user needs to navigate to the following path in the administration portal. Home -> Policies -> List Policies

Define Policy

To define a new policy, privileged users can click the ‘Define New Policy’ button in the List Policies page or navigate to the following path: Home -> Policies -> Define Policy

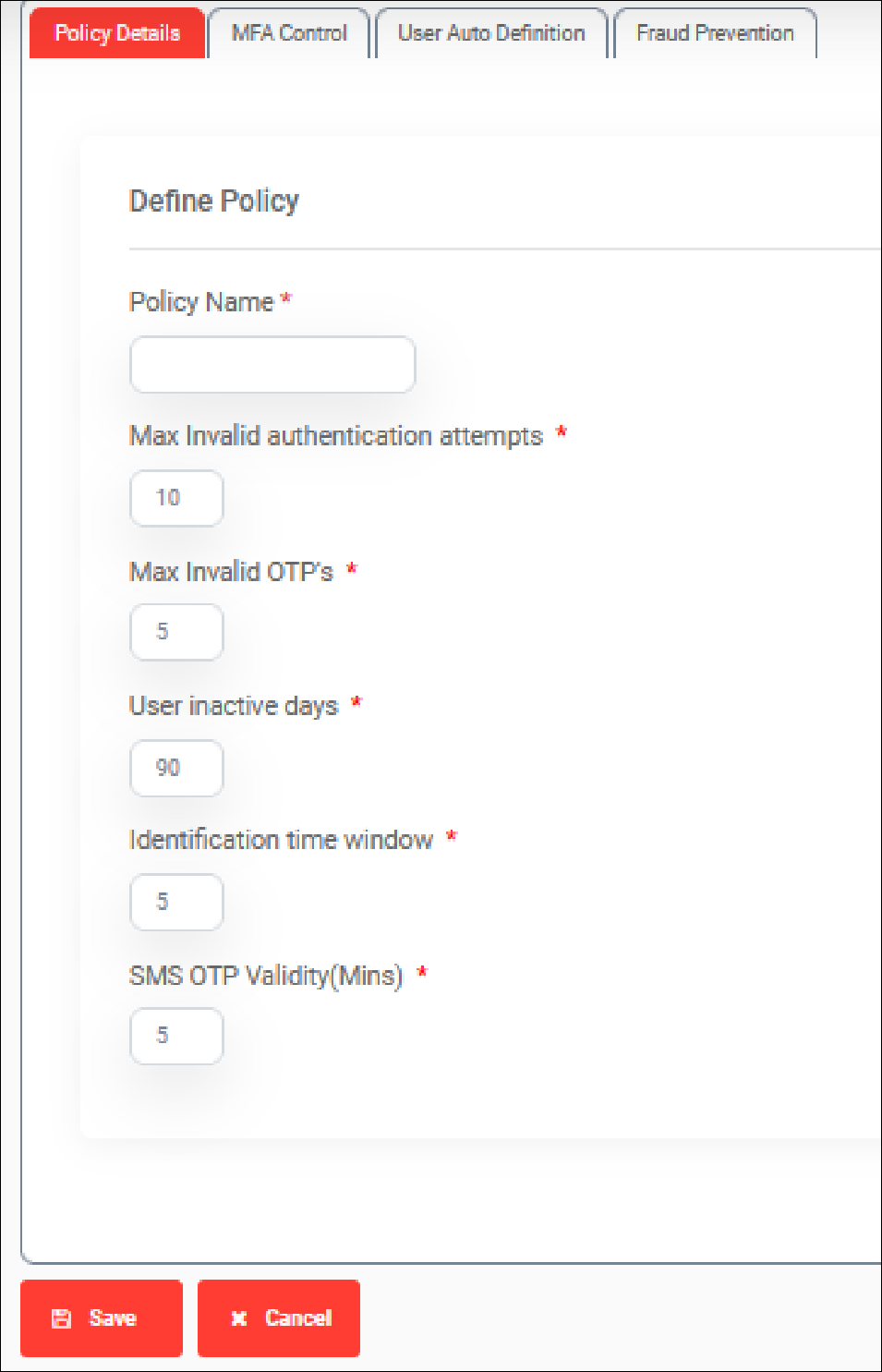

Following form is displayed on the screen:

Following is the description of all the fields in the above form.

Field Name	Description
Policy Details
Policy Name	Any name to identify the policy
Max Invalid authentication attempts (Applicable only for RADIUS Channel Type)	Maximum allowed invalid domain passwords for a defined user. If exceeded, the user will be marked as Locked and cannot authenticate further
Max Invalid OTP’s	Maximum allowed invalid OTP’s during OTP validation requests. If exceeded, the user will be marked as Locked and cannot authenticate further
User Inactive Days	Maximum Number days a user can be allowed to be inactive without authentication
Identification Time Window	Max allowed time (in 30 sec time steps) between user’s mobile token and mPass server time. Eg: - if this value is set to 3, And If Server Time (HH::MM::SS) is : 11:30:00AM Allowed Mobile App time (HH::MM::SS): 11:28:30 AM 11:31:30 This is required to correctly validate the OTP on the mobile phone.
SMS OTP Validity (Mins)	Maximum Time allowed between generation and validation of SMS based OTP

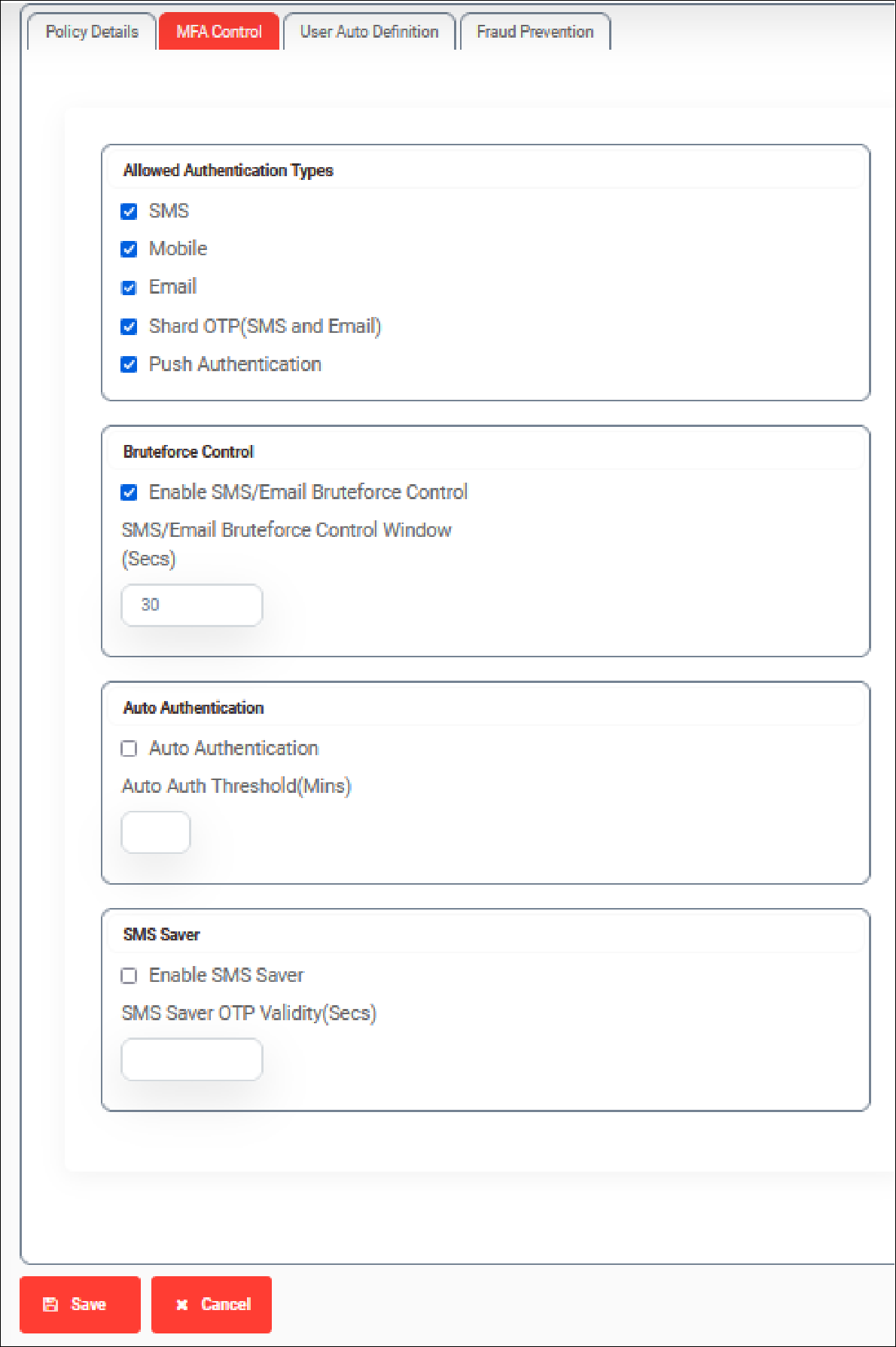

MFA Control
Allowed Authentication Types	The allowed authentication types for this policy. If unchecked, the users will not be able to see the option. If all are unchecked, the user will be by-passed 2FA.
Brute force Control	If enabled, multiple requests (within the allowed limits) for the SMS/Email will be silently ignored to avoid costs or performance reasons. Multiple requests can sometimes be generated by user clicking the send SMS/Email button multiple times.
SMS/Email Bruteforce Control Window (Secs)	Interval in which a new OTP via SMS/Email will not be sent to the user
Auto Authentication	Enabling will allow users to not apply 2FA if requested for authentication within Auto Auth Threshold period.
Auto Auth Threshold	Time range in minutes to allow Auto Authentication
Enable SMS Saver	This is to save SMS costs for sending OTP. Enabling this will not send SMS during authentication and the user has to use the last sent OTP. The last sent OTP will be valid for the duration mentioned in SMS Saver OTP validity
SMS Saver OTP validity	The maximum time validity period of the last OTP sent via SMS/Email
Enable SMS/Email Bruteforce Control	Enabling this will control the number of times the user will request OTP via SMS/Email. This is to control simulated HTTP requests using tools and saving SMS Costs

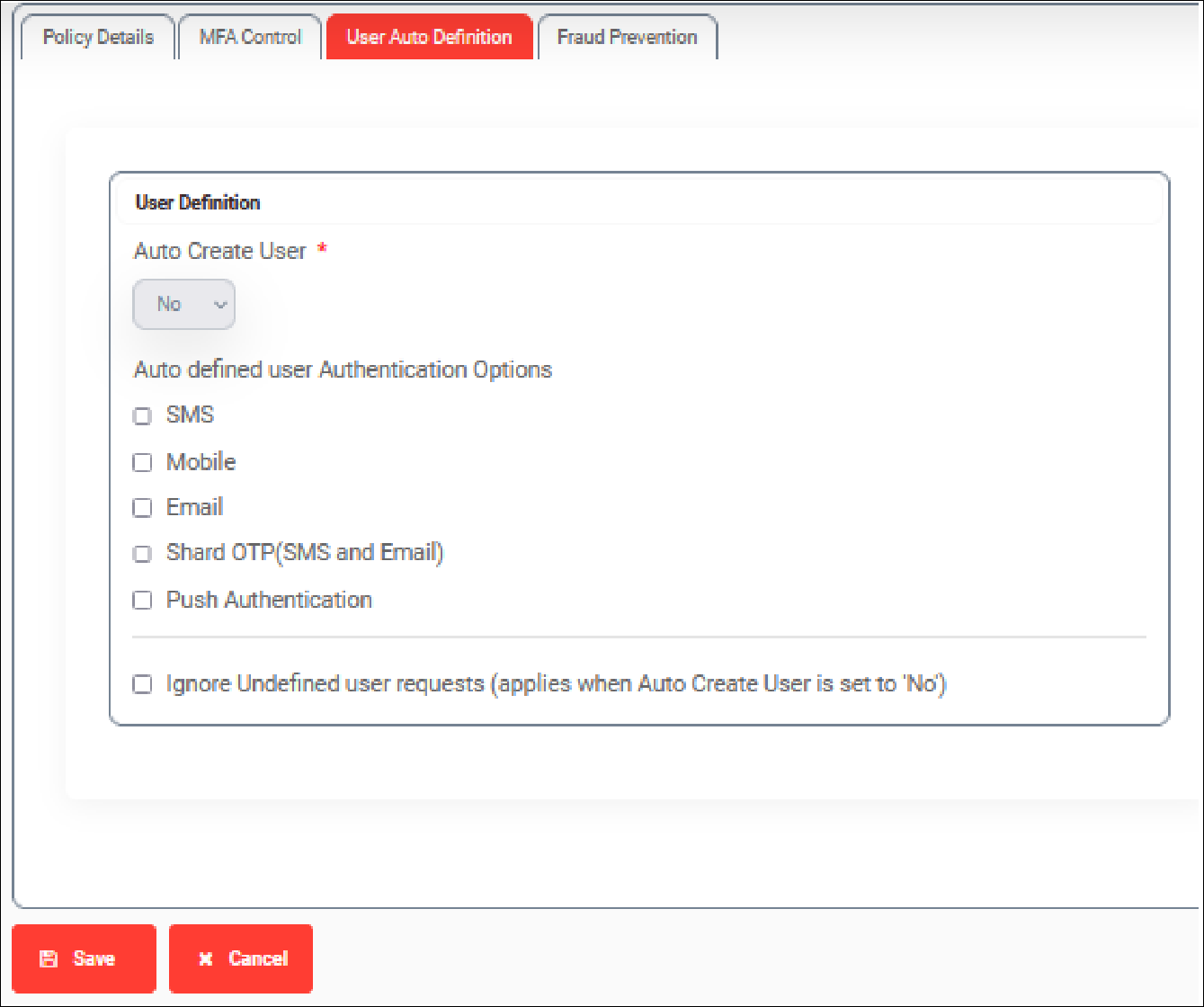

User Auto Definition
Auto Create User	Whether to auto-register user during first authentication request
Auto defined user Authentication Options	The default authentication options set for user created under ‘Auto Create User’ configuration. 1. SMS 2. Mobile 3. Email 4. Shard OTP (OTP will be split and send via SMS and Email) 5. Push Authentication
Ignore Undefined user requests (applies when Auto Create User is set to 'No')	Enabling this will cause users who are not defined in mPass to bypass 2FA, unchecked means the users requests are rejected.

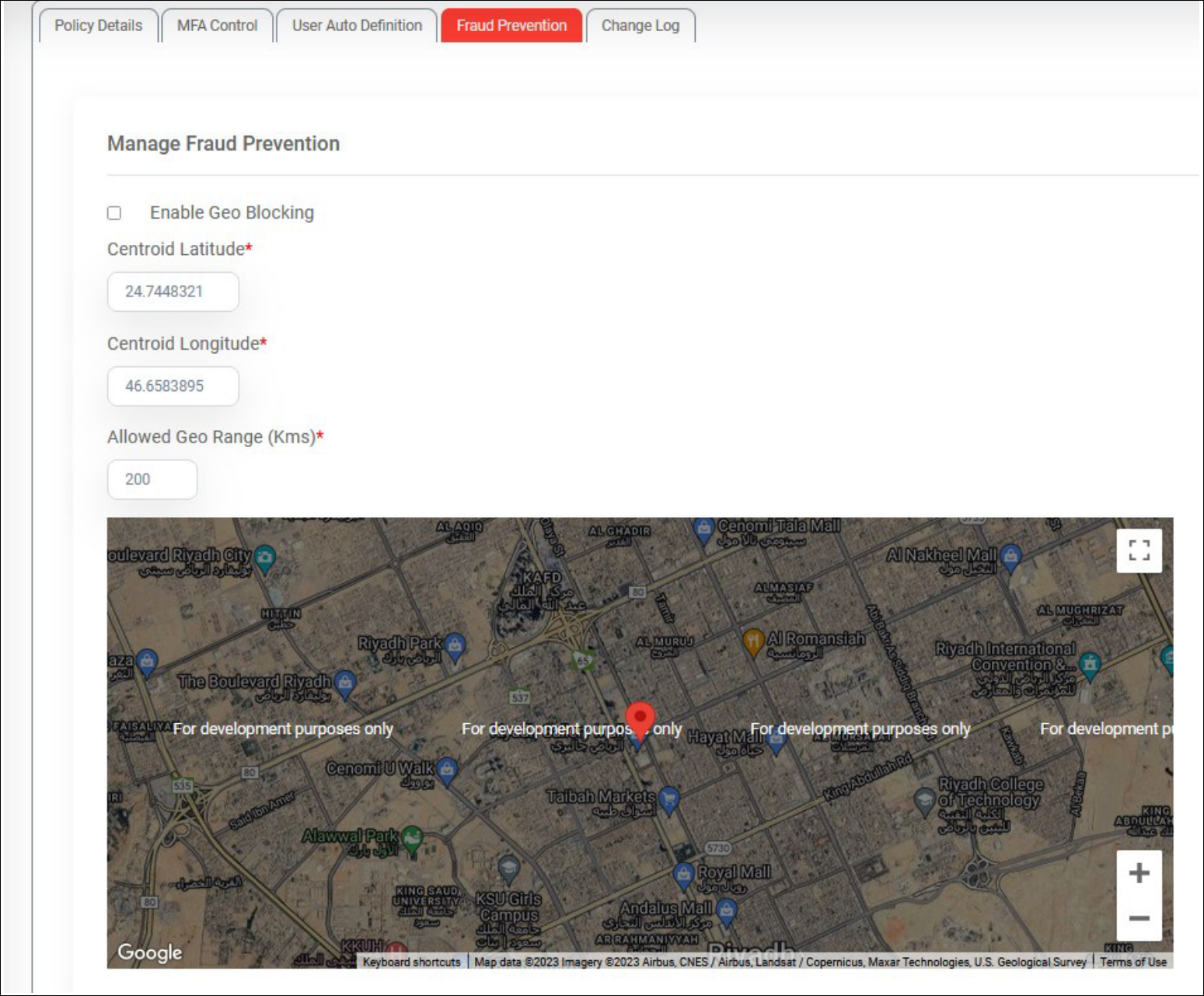

Fraud Prevention:

Note:

This feature requires a license for the Geo IP database from max mind. Currently mPass uses the offline database of the geo IPs. The database file should be copied into the configuration directory of the wildfly server.
This feature also requires Google maps API key to select the precise geo location.
This feature applies only to OWA and RESTful webservices channels/integrations.

Enforce Geo Blocking	Selecting the checkbox enables the feature
Centroid Latitude	Latitude for the centroid( typically the mPass deployment location)
Centroid Longitude	Longitude for the centroid( typically the mPass deployment location)
Allowed Geo Range (kms)	Allowed distance range in Kms (circular) from the centroid

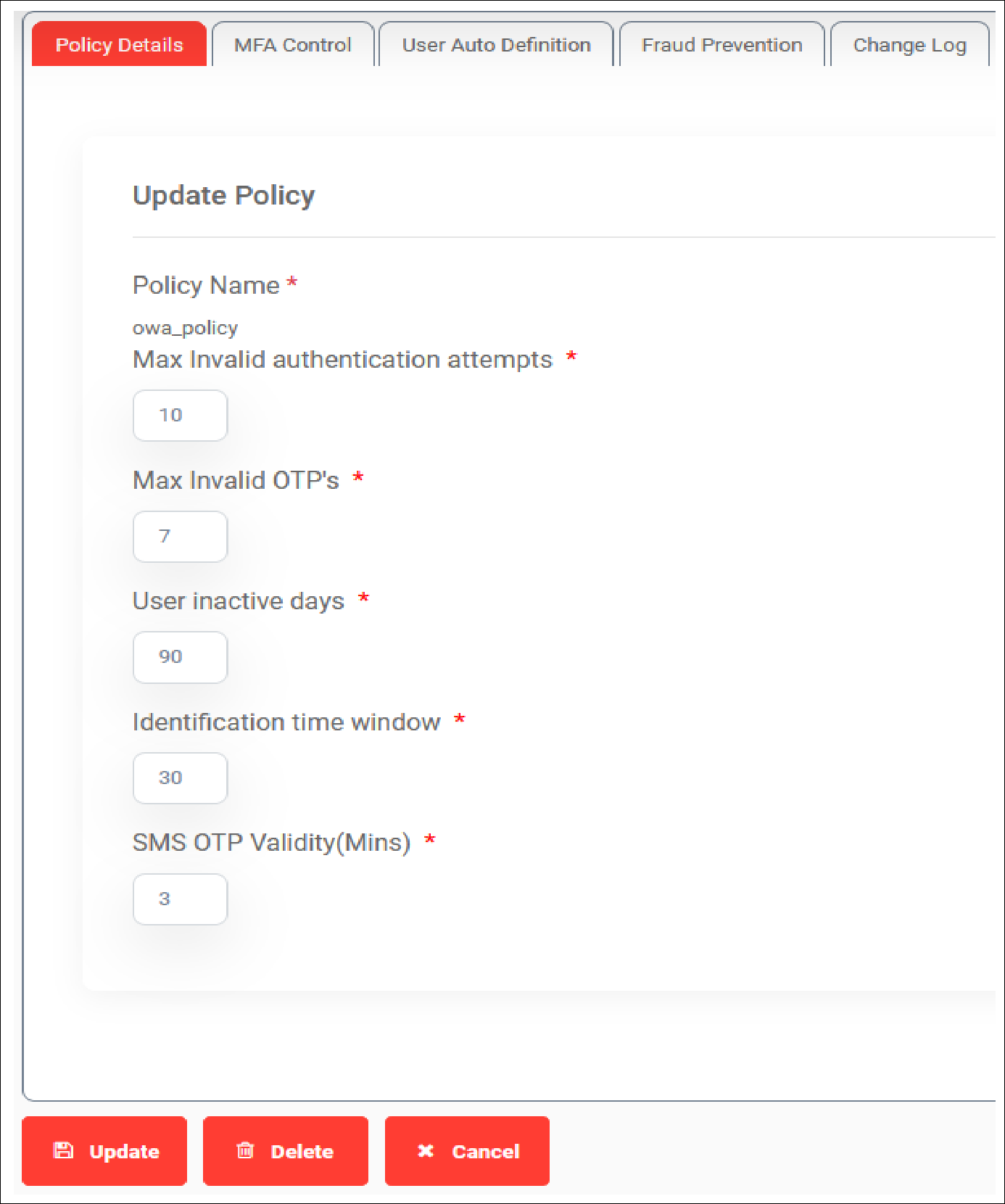

Modify Policy

Privileged users can modify the defined policy by clicking on the Policy Name field in the List Policies Page.

Tokens Management

Overview

Tokens are virtual authenticators (like Hardware OTP Generators). mPass supports industry leading OATH (https://openauthentication.org/) Compliant tokens to generate OTP’s.

Tokens are the core of the mPass system used to generate OTP.
Administrators can only import tokens provided by cerebra by means of xml files provided as part of PO. Tokens can be imported by clicking on the ‘Import Tokens’ link of the Tokens Management Section.
Mobile Tokens and Hardware tokens are assigned via User Registration Portal.
Unassigned Tokens can also be re-cycled by assigning them to another user.

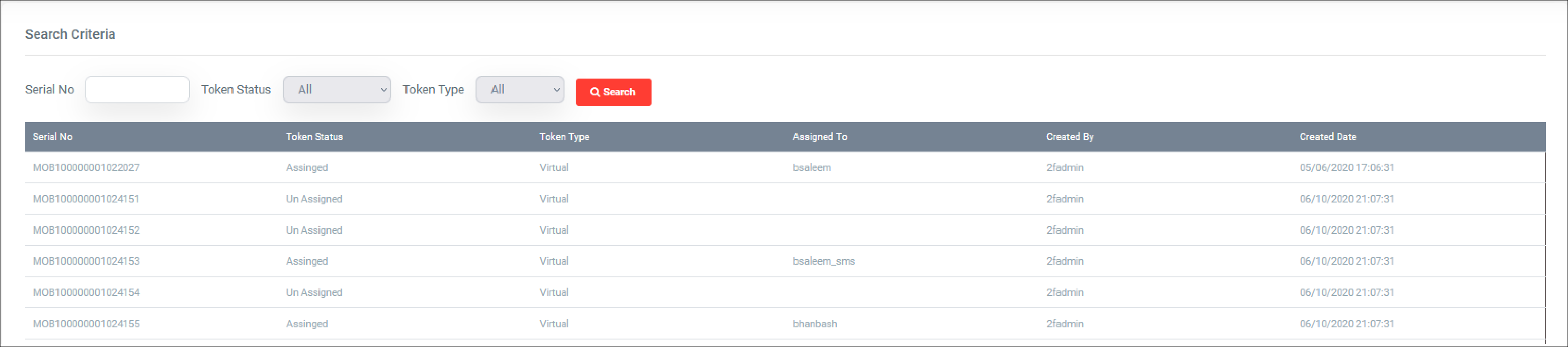

List of Tokens

Privileged users can view the available tokens using the administration portal from the following path: Home -> Manage Tokens -> List Tokens

Privileged users can search for a token based on the serial number and know whether it is assigned to any user or not. The privileged user can also view a particular token detail by clicking on the Serial No of the token.

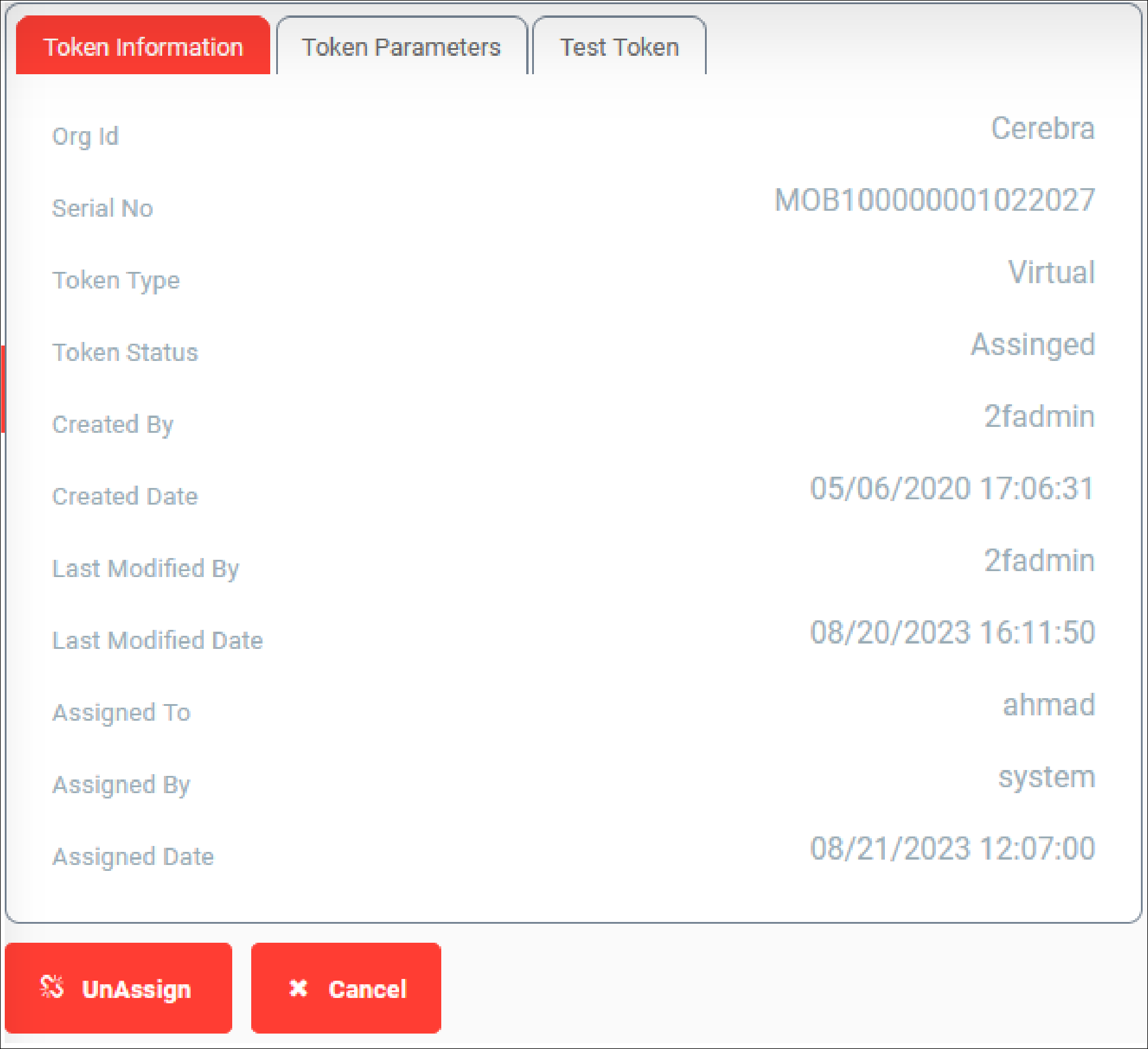

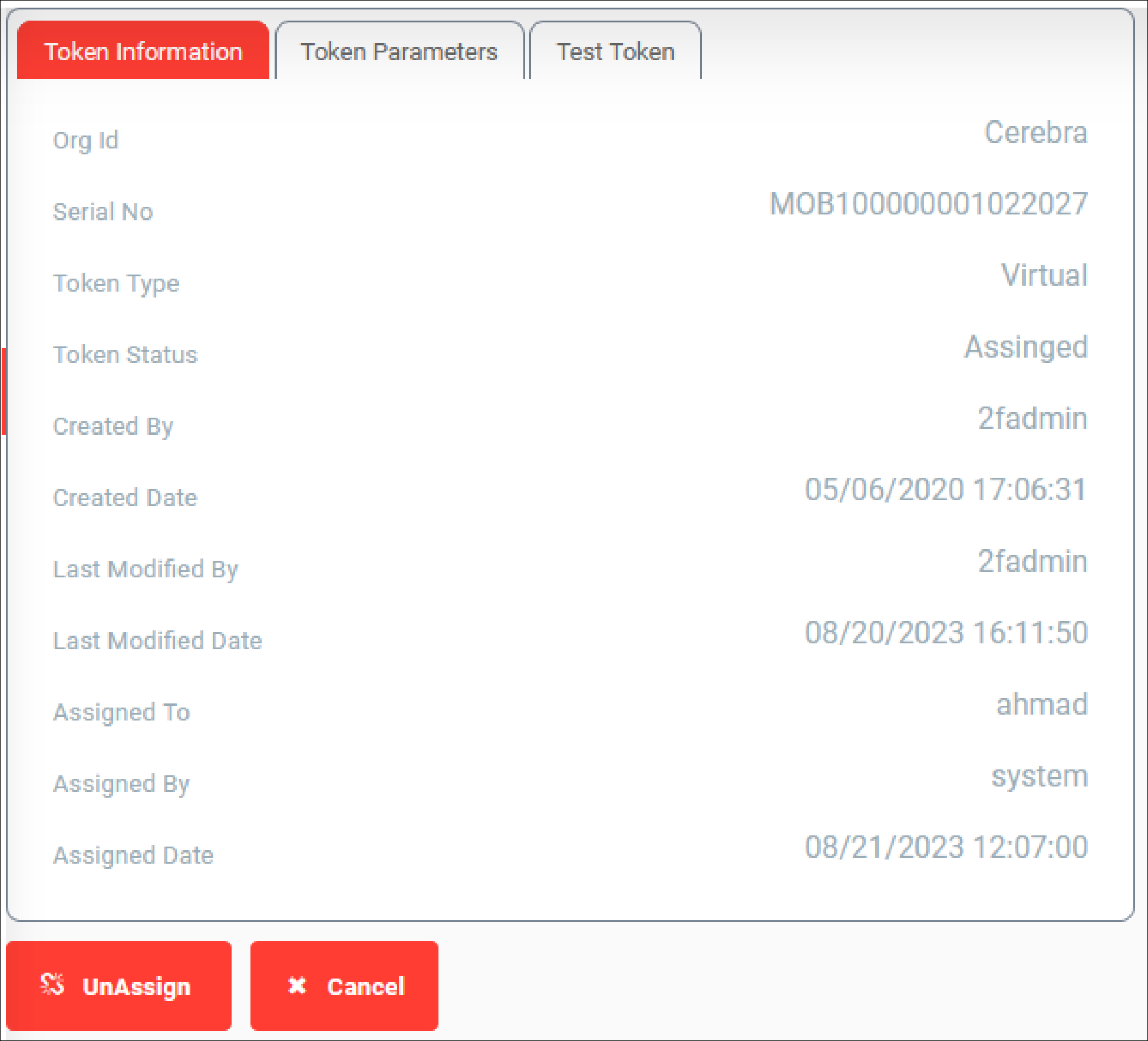

Following are the details of a token:

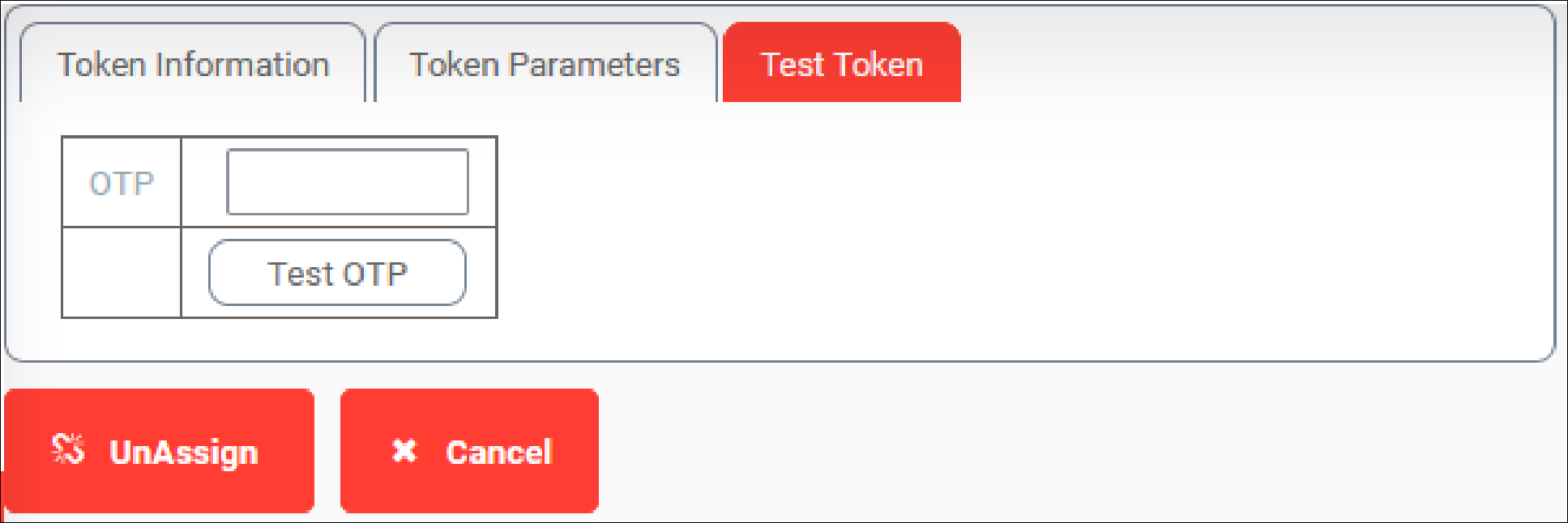

Test Token

To troubleshoot any issues with OTP validation, administrators can test the token using the ‘Test Token’ feature provided in Token Details page. The administrator needs to input the latest OTP generated from the Token.

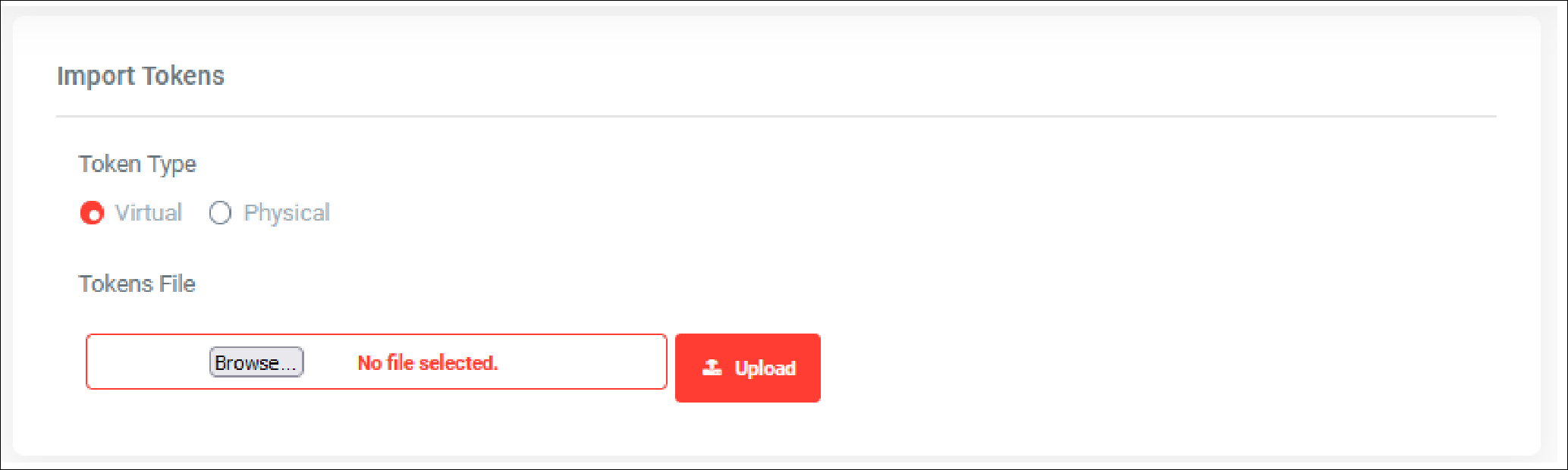

Import tokens

Tokens can only be imported into the mPass system. Typically tokens files are PSKC based XML files provided by Cerebra and are part of Purchase Order delivery. To import tokens into the mPass system privileged users need to access the following path: Home -> Manage Tokens -> Import Tokens

Un-Assign Token

Any token, which is assigned to a user can be Un-assigned from the user and re-assigned to another user. To unassign a particular token, administrators need to navigate to the details page of the required token and click the Un-Assign Button as shown below.

User Management

Overview

Users are the core entities of mPass system. There are 6 types of roles a user can belong to:

Role Name	Description
Super Administrator	Master user role of the system, Users who belongs to this role can execute all the privileges of the system.
Authenticator	Users who belong to this role cannot login to the administration or user portal. These users can only be authenticated by the MPass system.
VPN Local	Users local to VPN system and not present in Active Directory/belonging to domain.
Support	Users with Support role can only view the Request Logs and the Dashboard of the MPass system.
Authenticator and Administrator	User with both Authenticator and Super Administrator role
Operations	User with privilege for the following: 1. Dashboard(without interaction) 2. List Users(Read-Only) 3. Request Logs
mPass Local	User like Authenticator role, but the credentials are stored in mPass database rather than directory server

Authenticator users can be defined in the mPass system in 5 methods:

Automatic registration by the services like radius, owa, etc. (allocated ‘authenticator’ role)
Bulk import of users from .csv file in a specific format from the ‘import user’ feature of administration portal. (allocated ‘authenticator’ role)
From ‘create user’ function of the administration portal
Import from directory server
Created when user logs into user portal via self-registration.

Automatic Registration

The automatic registration of users can be performed by the following mPass Services provided the corresponding channel policy is configured for Automatic User Registration.

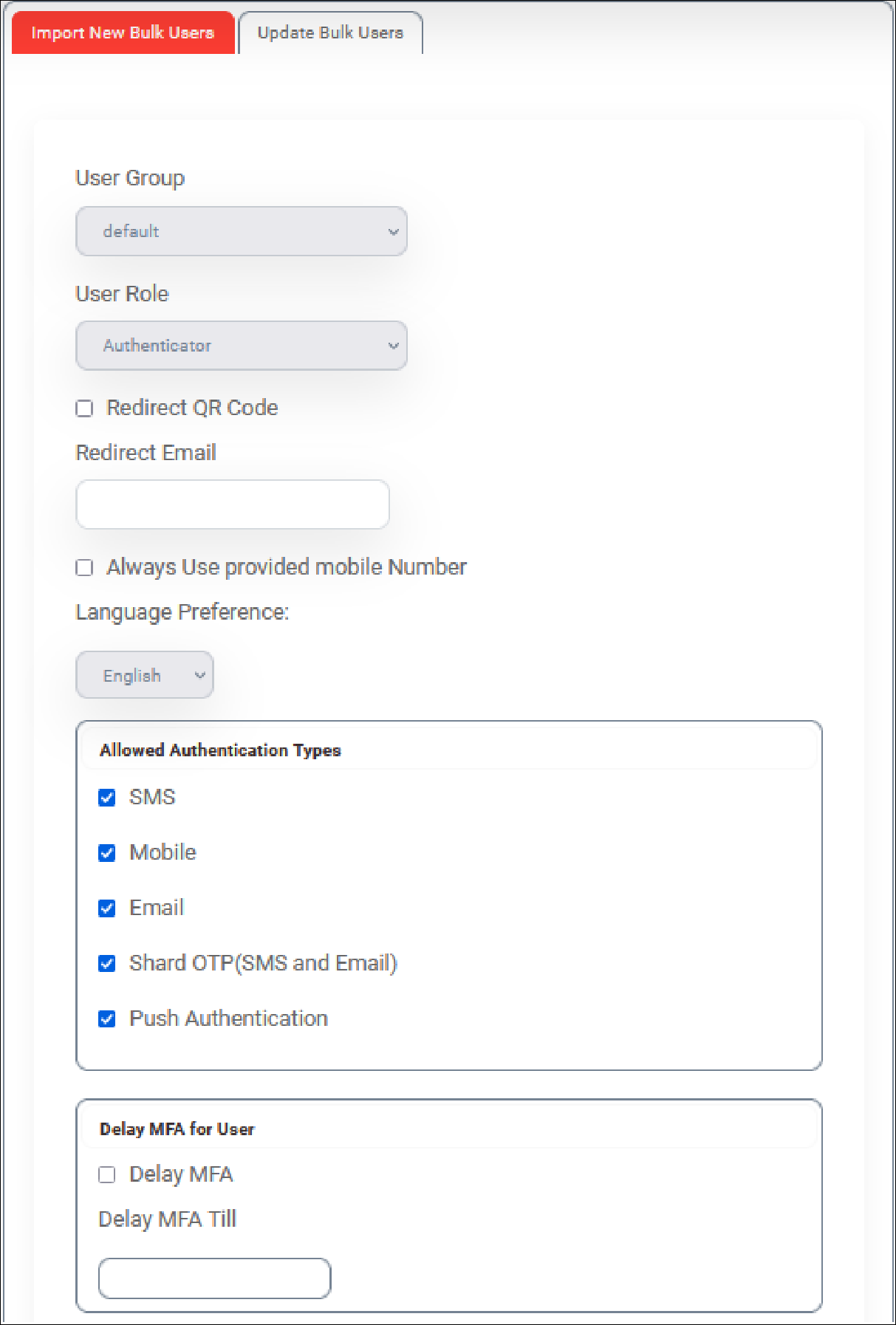

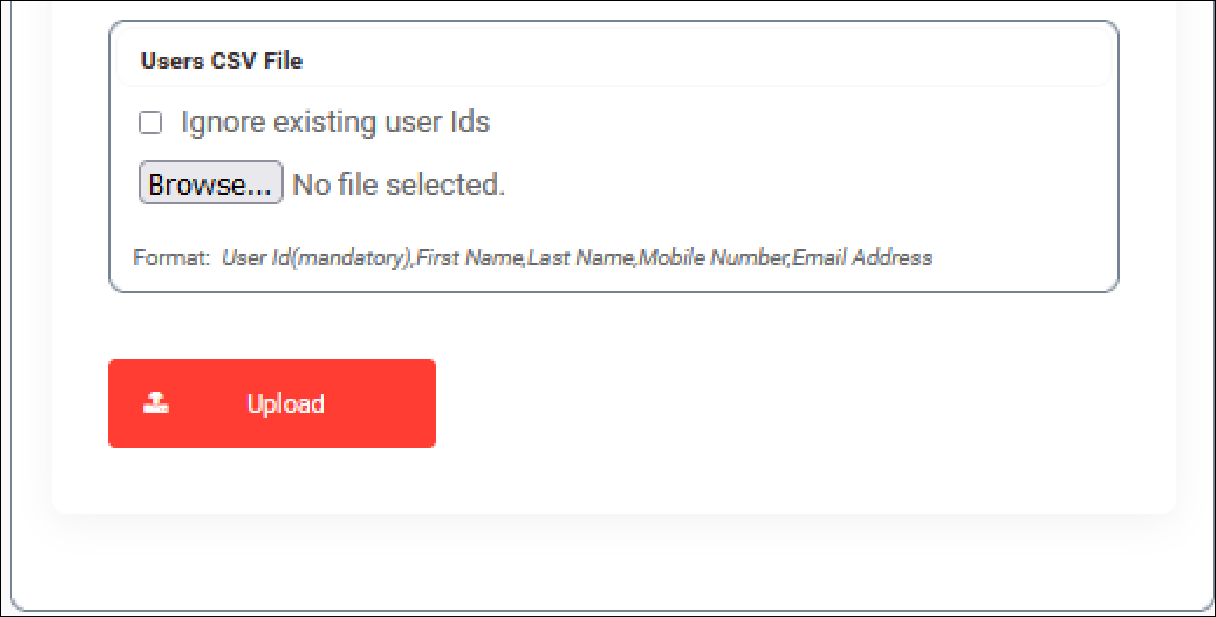

Bulk Import

Using this feature of the administration portal, system administrators can import bulk users who should be assigned ‘Authenticator’ role from a .csv file in a specific format mentioned below. This feature can be accessed from the following path of the administration Portal. Home -> Users -> Import Users

All the users imported will be assigned a role of ‘Authenticator’.

The .csv file should have following specifications to successfully import the user names.

Each line in the file should have the following structure <user id>,<first name>,<last name>,<mobile number>,<email> The first field <user id> is mandatory and the others are optional.
The file name should be a valid operating system file name.
The extension should be .csv and should not exceed 500 records.
The user ids in the file should not exist in the mPass system and if exists, the import of other valid user ids will not succeed.

Create User

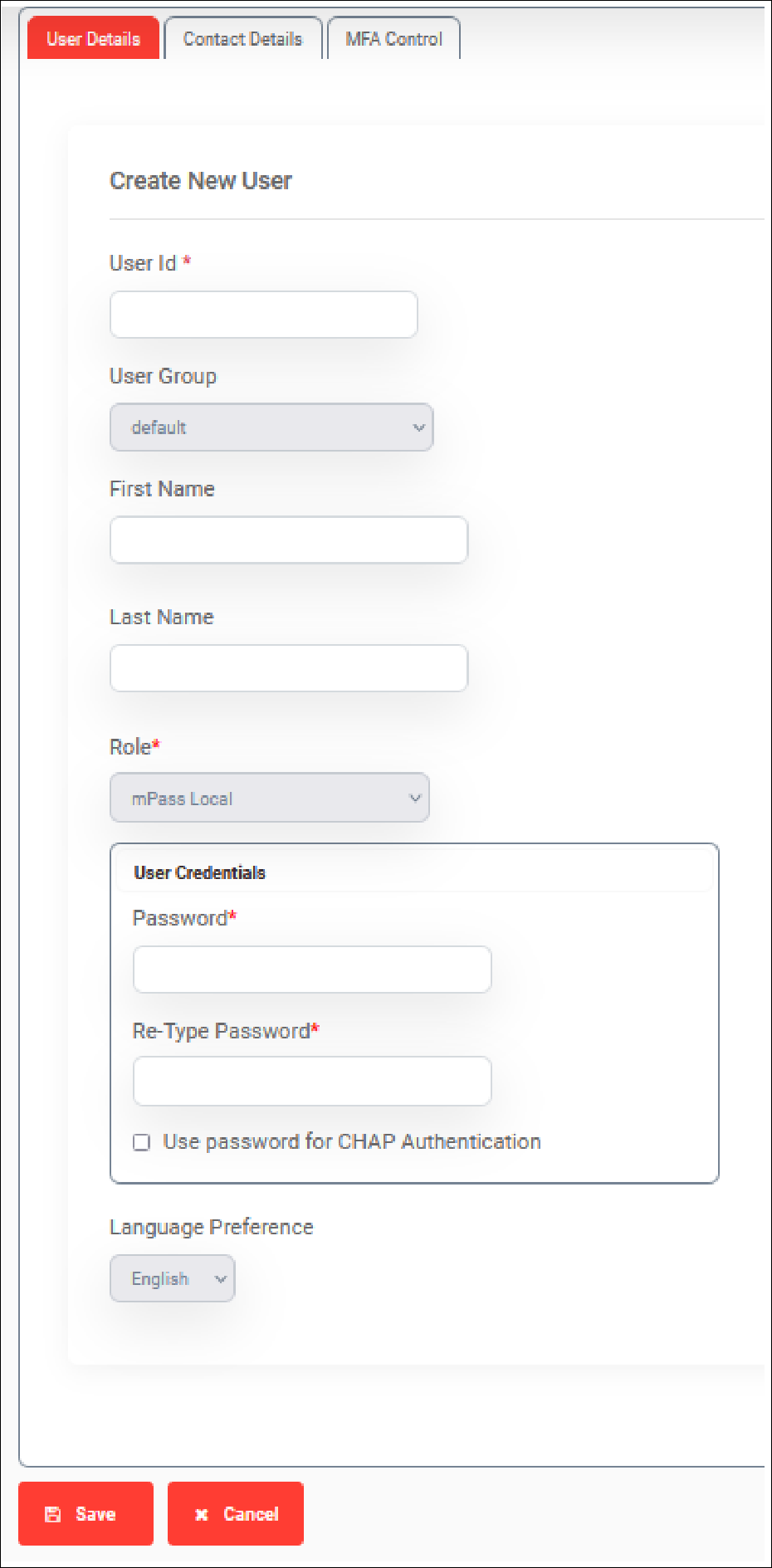

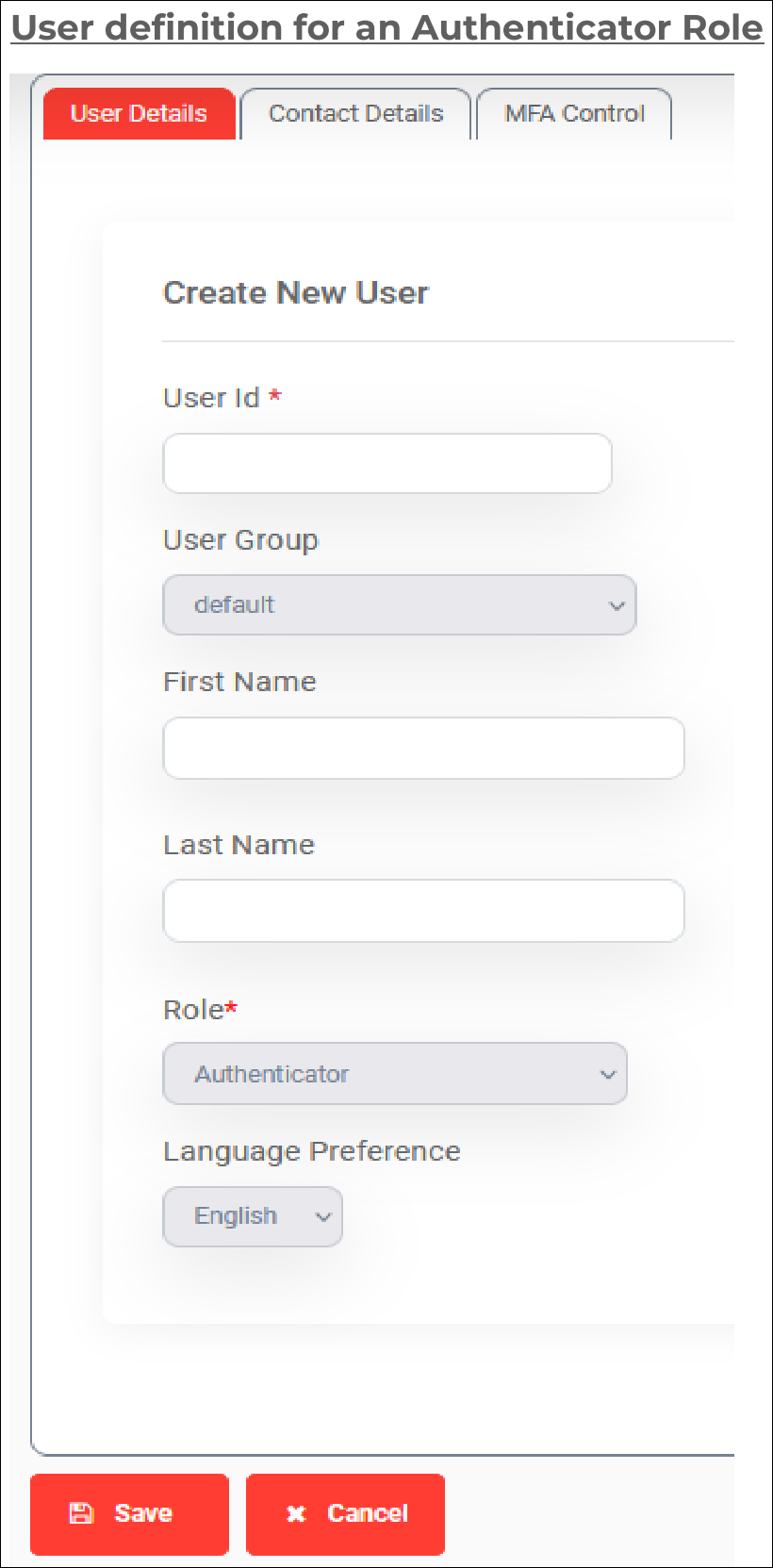

Administrators can also define individual user from the administration portal. This feature is also useful when the administrator wants to create a user with roles ‘Super Administrator’/’Authenticator’/’Support/Authenticator and Administrator’ roles. This feature can be accessed from the following path of the administration Portal. Home -> Users -> Create User

User definition for a Non-Authenticator Role

For a non-authenticator role password is mandatory

Following is the description of all the fields in the above Create User Form:

Field Name	Description
User Details
User Id	Unique Identifier for the user without spaces
First Name	First Name of the user with Alpha numeric characters and with a space
Last Name	Last Name of the user with Alpha numeric characters and with a space
Password (Applies only to Super Administrator, Support , Operator and mPass Local Roles)	Password of the user. The password should follow the following rules: 1. Must contains one digit from 0-9. 2. Must contains one lowercase characters. 3. Must contains one uppercase characters. 4. Must contains one special symbols in the list "@\#$%". 5. Length of at least 10 characters and maximum of 128.
Re-Type Password(Applies only to Super Administrator and Support Roles)	Should match the above password
Role	Role to assign to the user. 1. Authenticator 2. Super Administrator 3. Support 4. VPN Local 5. Authenticator and Administrator 6. Operations 7. mPass Local
Language Preference	The language of the SMS sent during OTP

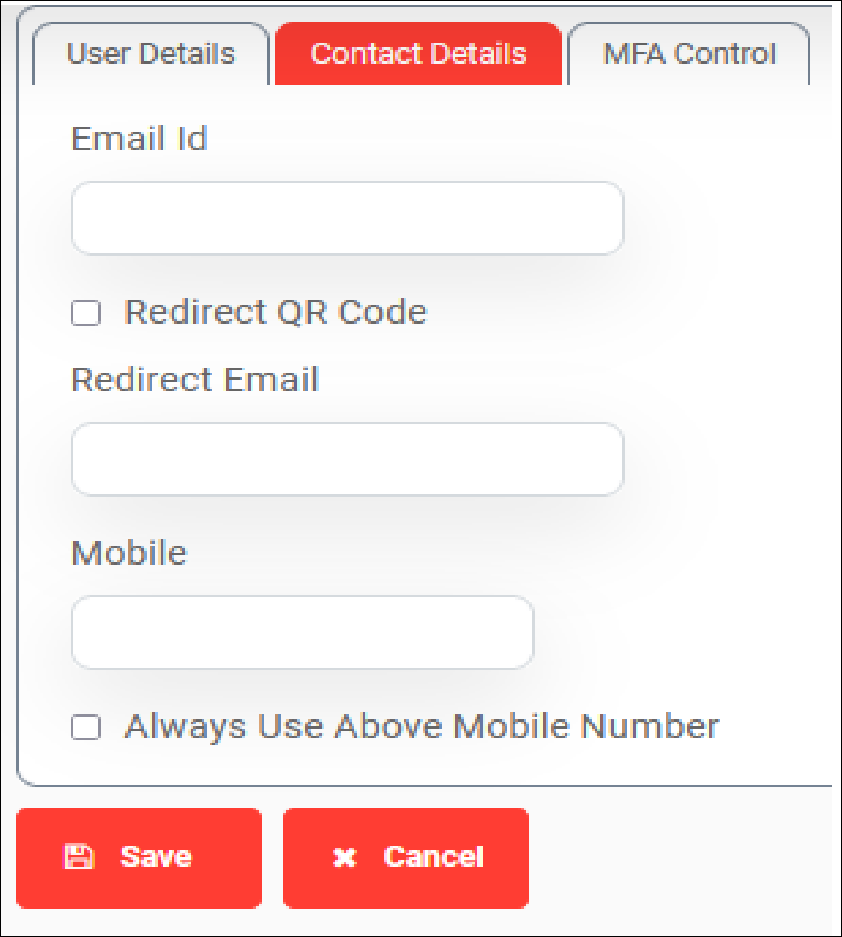

Contact Details
Email Id	Valid Email address of the user (used to send QR codes via email to users)
Redirect QR Code	If checked, the QR codes will be sent to the Redirect Email
Redirect Email	Email address to be used to send QR codes rather than the above email
Mobile Number	Mobile Number of the user Will be used in the following cases: 1. Send SMS to users if role is VPN Local 2. Send SMS if ‘Always use above mobile number’ field is checked(see below field)
Always use above mobile number	Selecting this checkbox will always use the mobile number defined in above field Mobile Number rather than from directory user attribute when sending SMS to user.

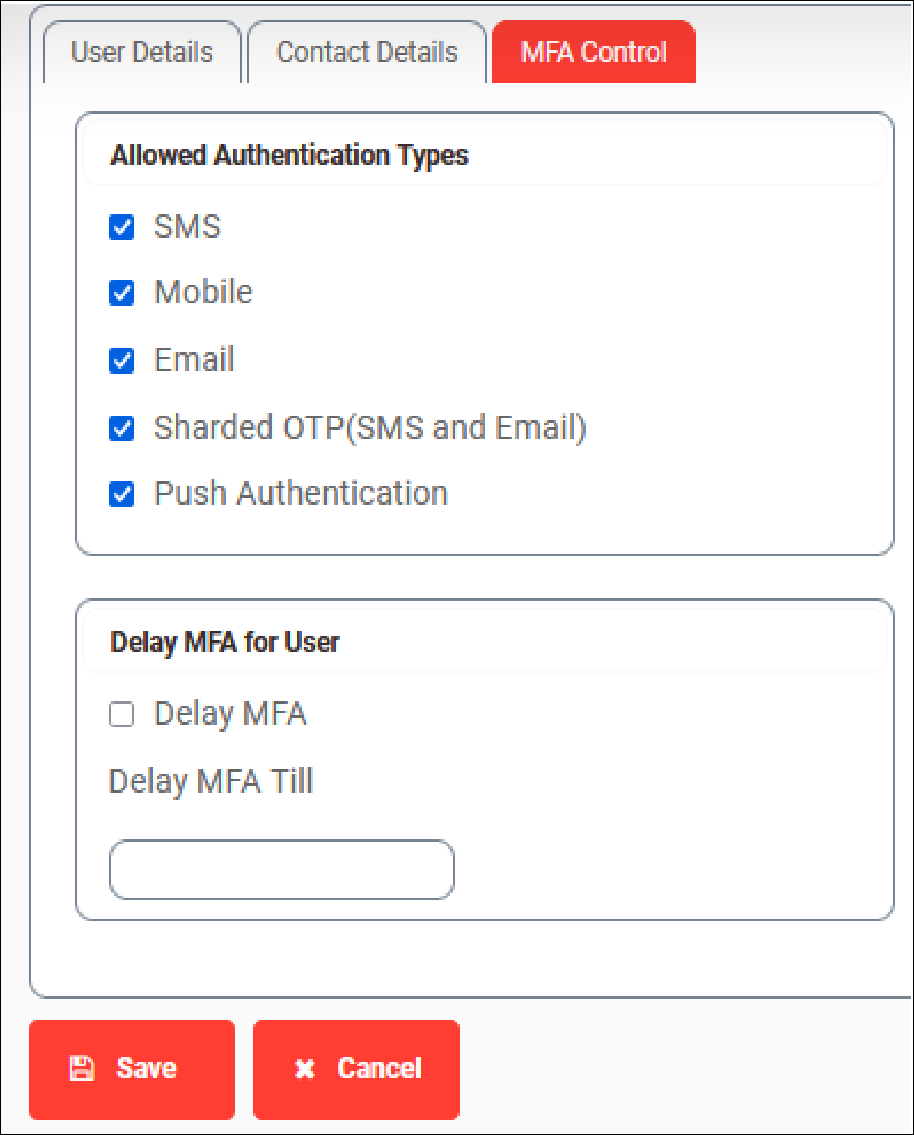

MFA Control
Allowed Authentication types	User will be able to view/use the selected options during authentication from OWA/ADFS/VPN 1. SMS 2. Mobile 3. Email 4. Shard OTP 5. Push authentication Note: Displaying of these options will also be based on the policy being applied for the channel
Delay MFA User	Enabling this feature will delay applying the 2FA to the users across all channels till the specified date in Delay MFA Till.

Modify User

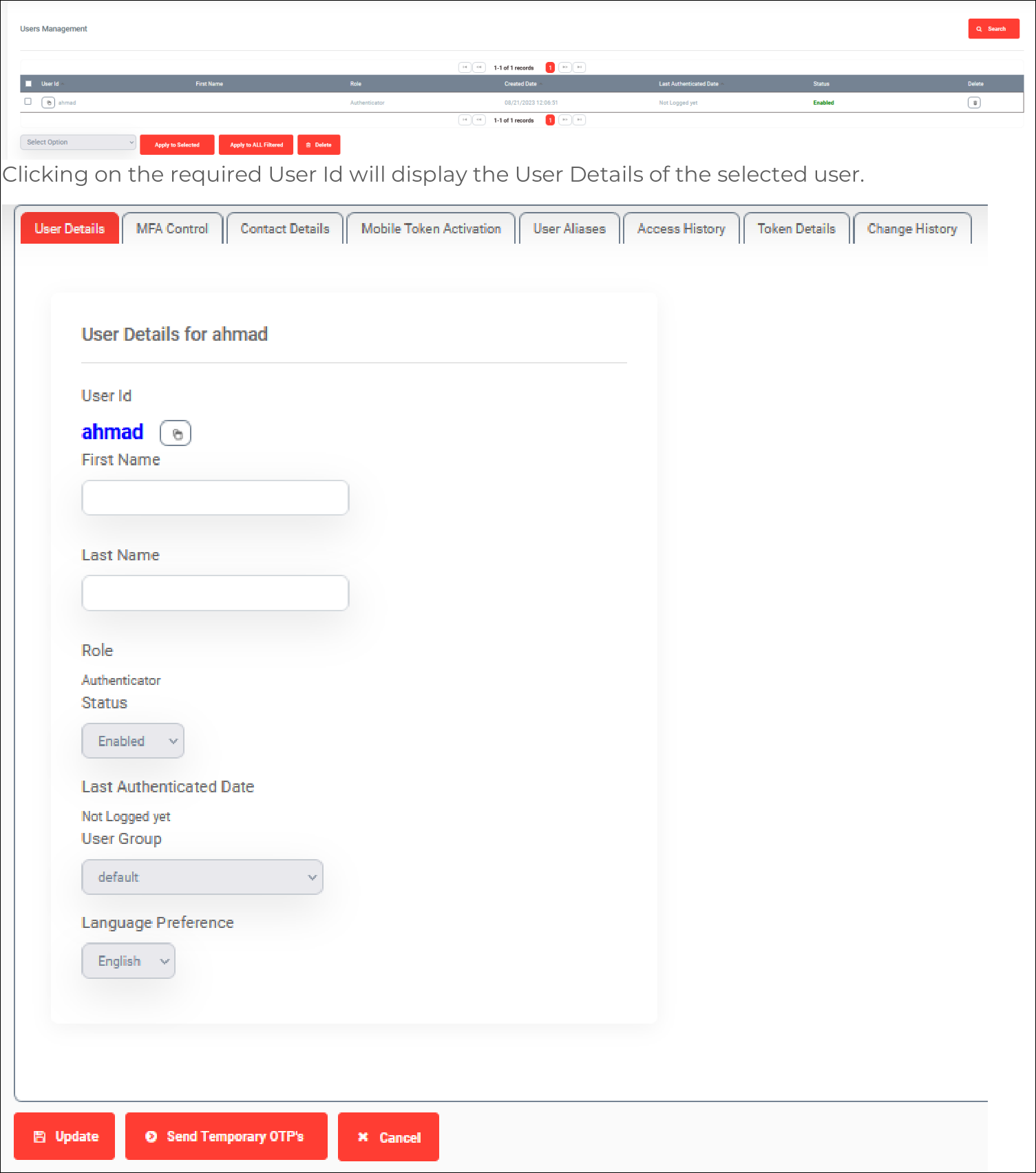

The privileged user can modify the user’s information of previously defined user by automatic /imported methods. This feature can be accessed from the following path of the administration Portal. Home -> Users -> List Users

The administrator can modify the editable fields except the User Id

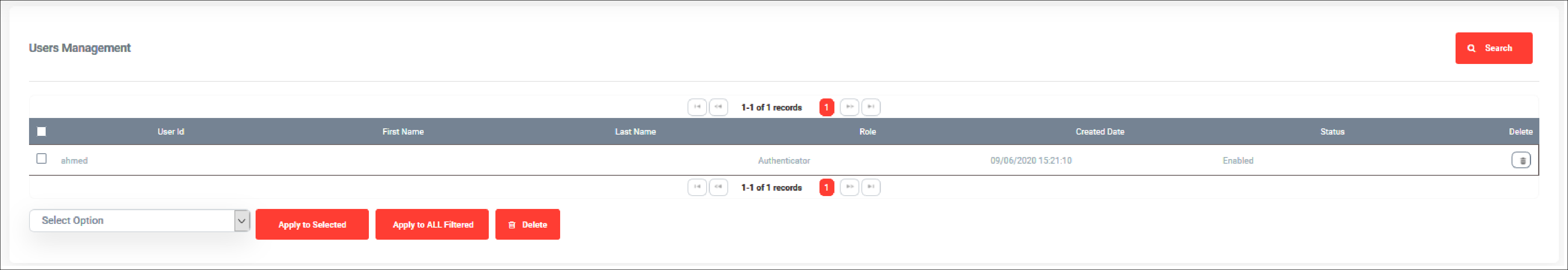

Searching Users

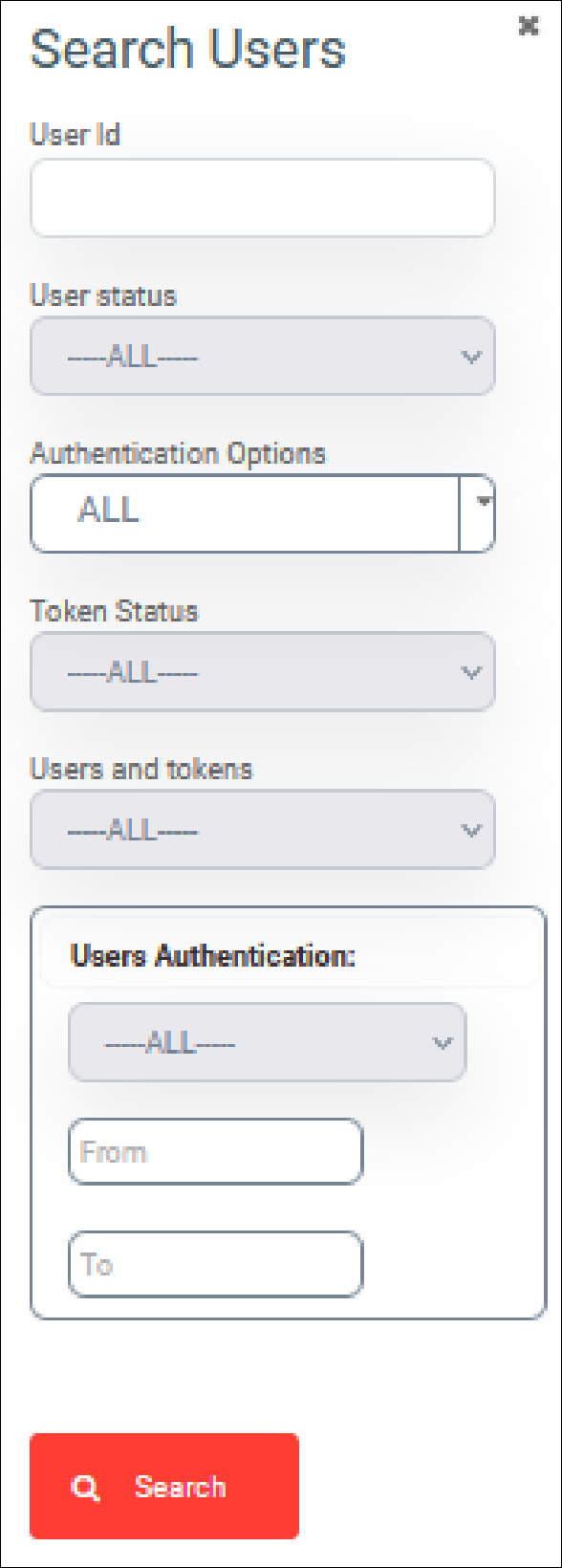

Privileged users search users using combination of various parameters. The search form is hidden by default and can be viewed from the following path: Home -> Users -> List Users-Search Button The following search form will be displayed below.

Following is the description of all the fields in the above Search User Form:

Field Name	Description
User Id	Unique Identifier for the user without spaces
User Status	Status of the user: 1. Enabled 2. Disabled 3. Locked
Authentication types	1. SMS 2. Mobile 3. Email 4. Shard OTP 5. Push Auth
Token Status	To find users with tokens assigned/not assigned
User Authentication	Users Authenticated during: Searches for Users who have authenticated during the From and To dates Users not authenticated during: Searches for Users who have not authenticated during the From and To dates Users Never Authenticated: Searches for Users who have never authenticated during the From and To datesFrom-Search Start date and time To-Search End date and time Note: Search Start date should always be before the Search End date.

Un-Assign Tokens from User

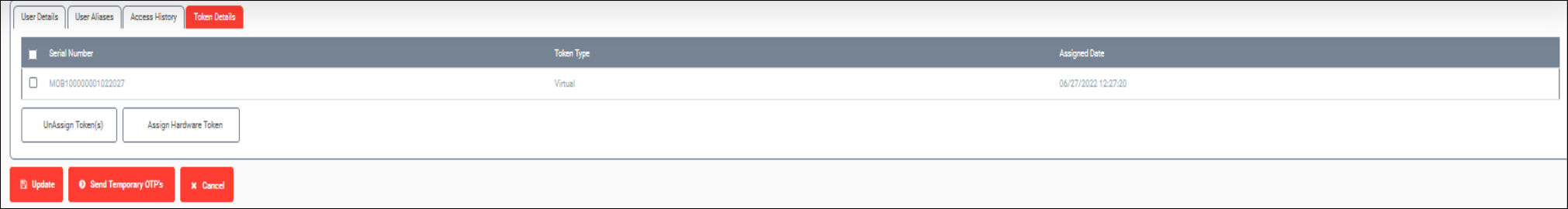

The administrator can Un-Assign the tokens already assigned to the user from the ‘Assigned Tokens’ tab in the User Details form.

Once Un-assigned from the user, the token is free and can be assigned to another user in the mPass system.

Deleting User(s)

The administrator can delete any user from the mPass system using the delete button in the list user’s page or select the checkboxes of the left side for multiple users. Home -> Users -> List Users

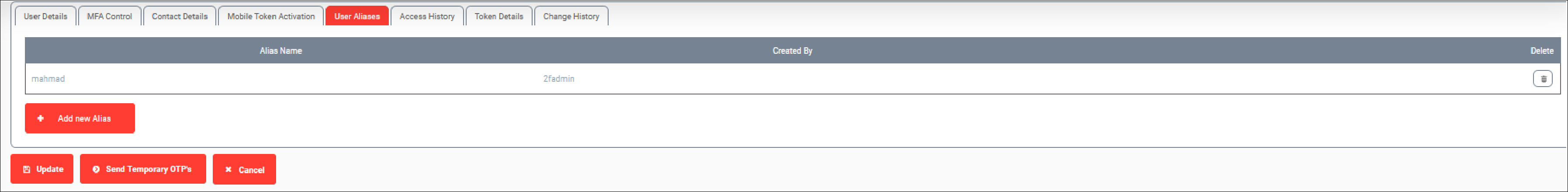

Defining User Alias

Privileged users can define multiple user aliases(maximum 5) for a single user. Users can use the user id or the alias during authentication from RADIUS/OWA/Windows Channels.

Defining user alias can be found in the user details page as shown below.

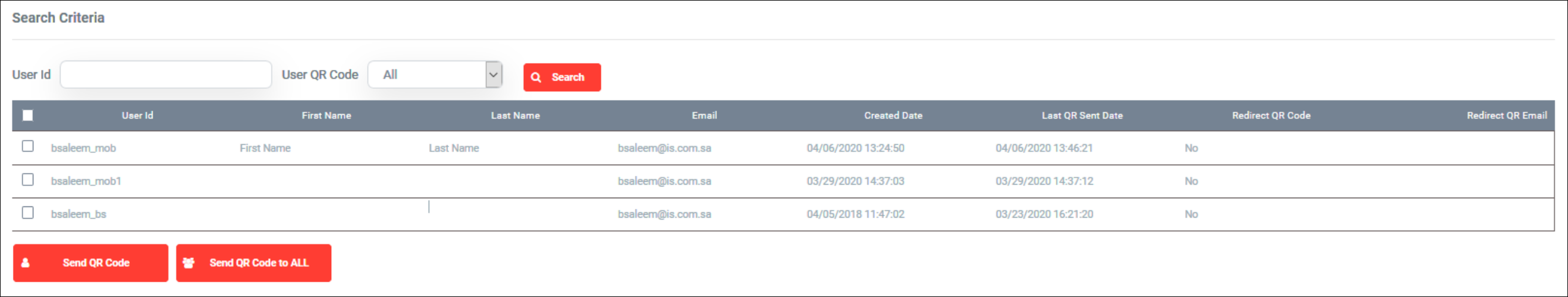

Send QR Token

Privileged users can send QR codes to the required users to via emails any time. Please navigate to the following path to access this feature Home -> Users -> Send QR Token

Note:- Please note that the old token assigned to the user will be automatically invalidated.

Group Management

Users in mPass can be managed using various groups. The ‘default’ user group is already defined in mPass and the new users automatically belong to this group. mPass administrators can create new groups and perform the following operations on the users:

Change Language
Change Authentication Options
Extend Token activation date
Move selected users to other groups
Change User Status
Change User Application access types

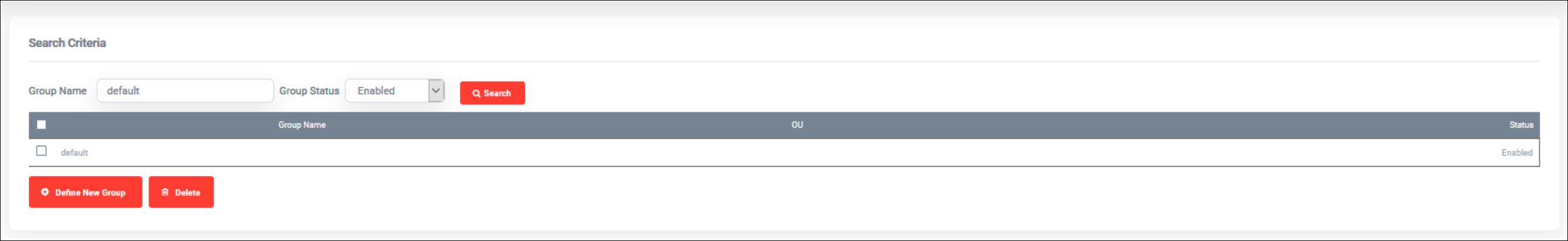

View Groups

To view the current groups, the privileged users can navigate to Home->Users->Groups Management

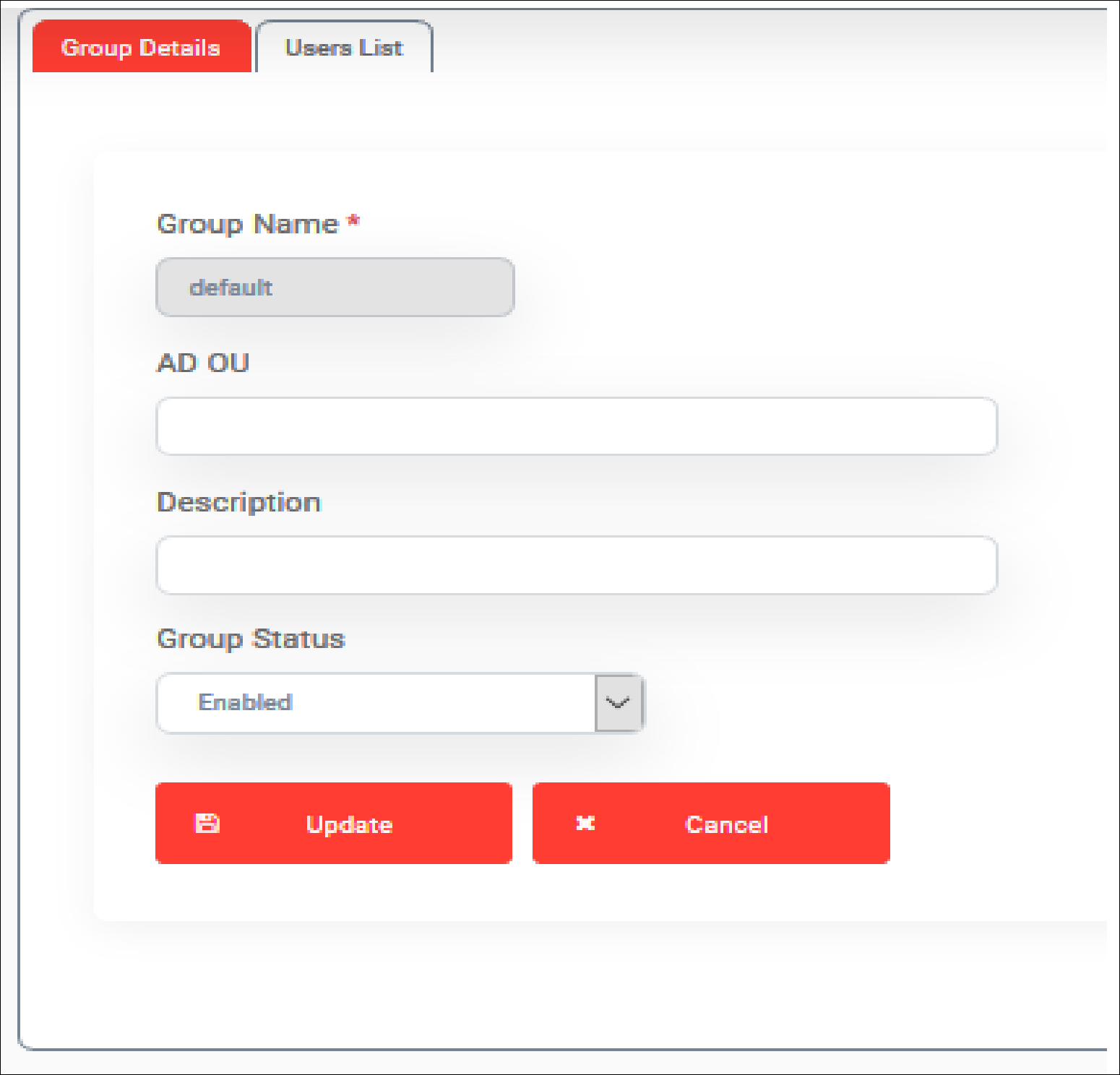

Update Group

Privileged users can modify existing groups to perform operations on bulk users. To update a group, the privileged user should click on the required group name from the group list.

Following screen will be displayed to the user:

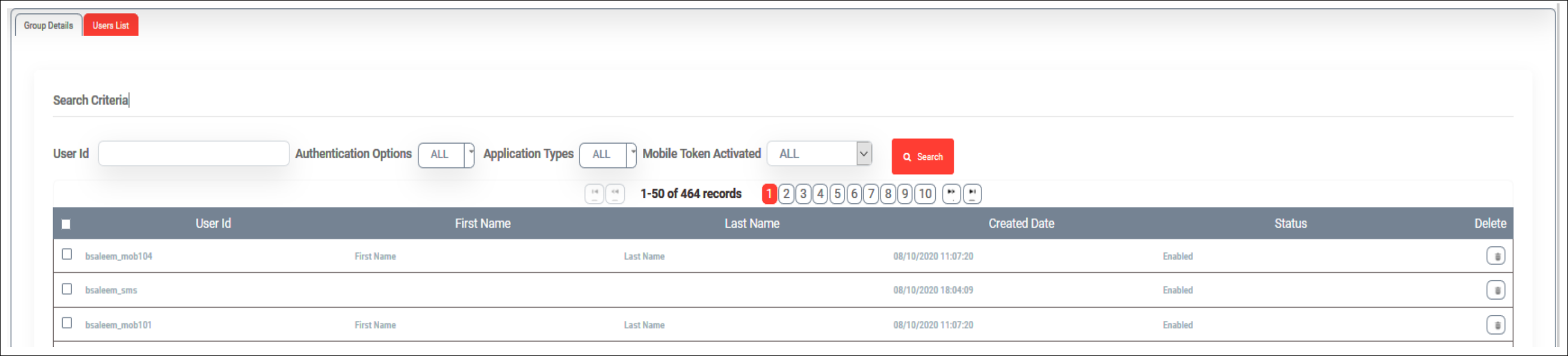

To view the users in the group, privileged user should click the ‘Users List’ tab in the group details page.

Reports

Home(Dashboard)

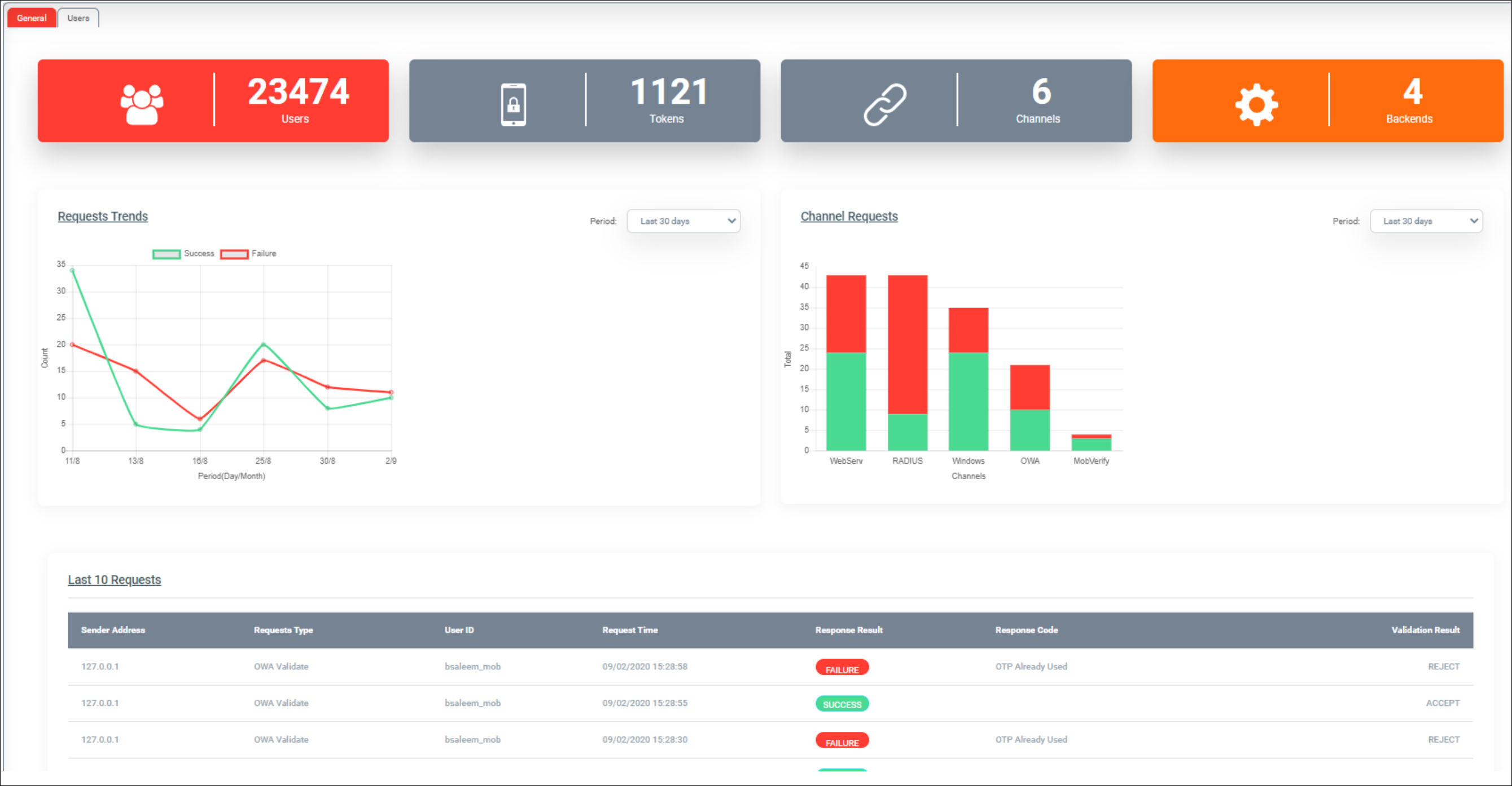

Using the dashboard feature of mPass, privileged users can view the high–level statistics of mPass system. Information such as Authentication and Validation requests across different channels (RADIUS, OWA…) at different intervals such as Daily, Weekly, Monthly.

The default screen will display the Authentication and Validation logs statistics. The default channel type will be RADIUS and the period will be monthly. Users can also view the statistics for other channel types and for different periods.

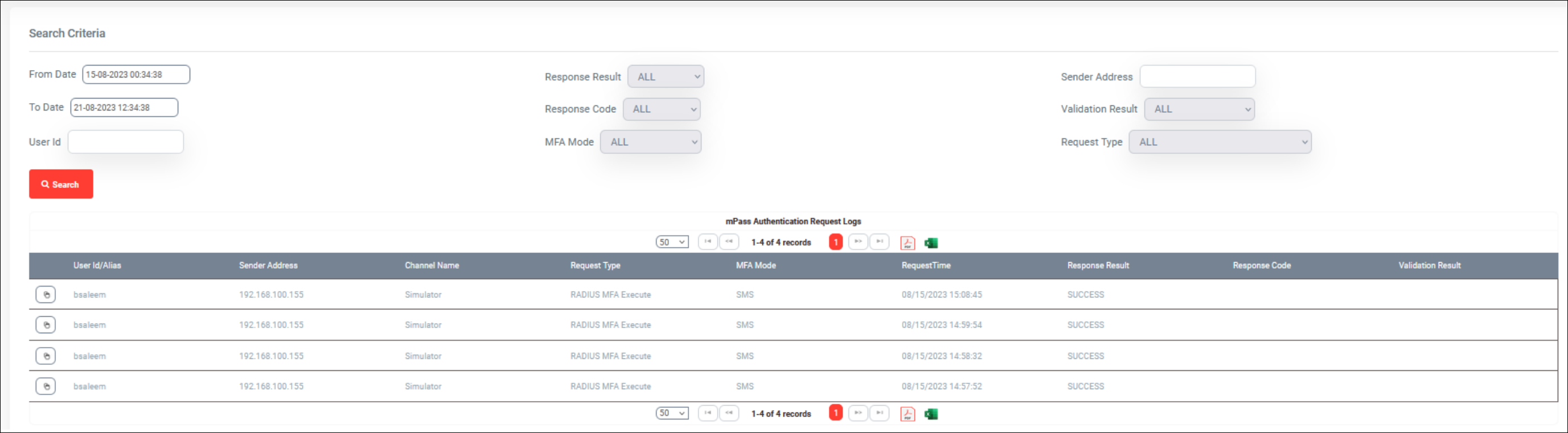

Request Logs

Privileged users can view the Authentication and Validation logs from all the Channels of the MPass system. Users can access the report from the following web link path: Home -> Reports -> Request Logs

Users can also filter the report output using the following criteria:

Criteria Name	Description
From Date	Authentication/Validation Request Date start
To Date	Authentication/Validation Request Date end
Request Type	Authentication/Validation Request types from channels RADIUS/REST/OWA/ADFS channels
User id	User identifier of the required user
Response Result	Response status for the request
Sender Address	IP address of the service requester
Response Code	Reason for Rejection of request
Validation result	Reason for Acceptance/Rejection of OTP validation

The report contains information such as the following:

Parameter Name	Description
User Id/Alias	User identifier of the required user
Sender Address	IP address of the service requester
Channel Name	The channel name of the request
Request Type	Authentication/Validation Request types from channels RADIUS/REST/OWA/ADFS channels
MFA Mode	The MFA option used by the user
Response Result	Response status for the request
Response Code	Reason for Rejection of request
Validation result	Reason for Acceptance/Rejection of OTP validation

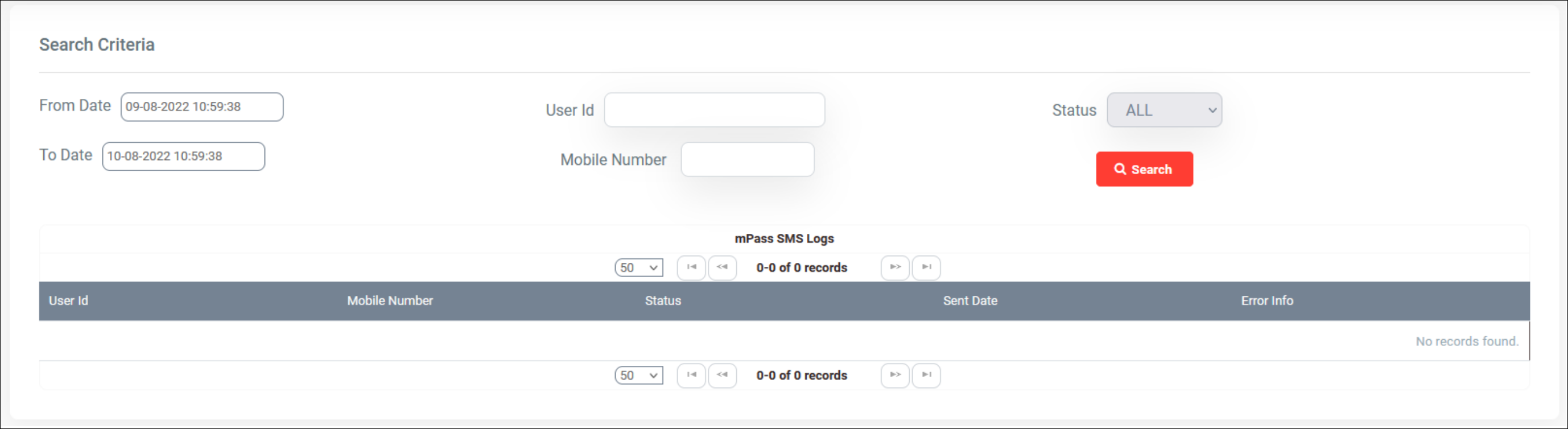

SMS Logs

The privileged users can view the SMS report to know the status of OTP via SMS sent to the users. The privileged user can view the destination number, the status and the date and time of the SMS, but not the OTP message. Users can also filter reports using various criteria such as From Date, To Date, receiver email and status. To navigate to the report, privileged users can navigate to Home->Reports->SMS Logs:

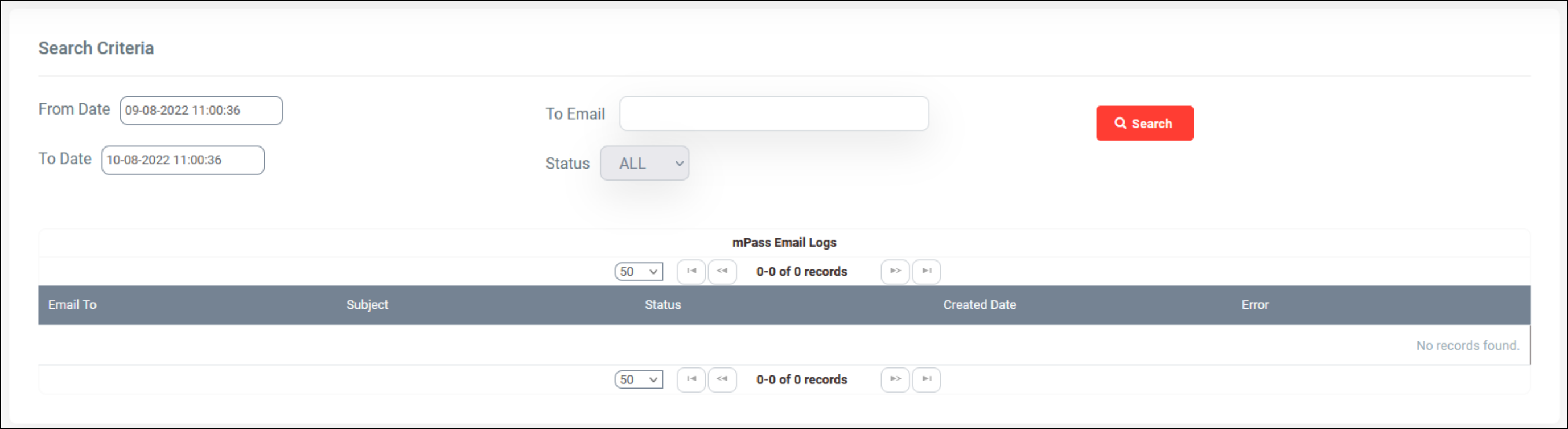

Email Logs

The privileged users can view the Email report to know the status of emails sent to users/OTP via Email sent to the users. The privileged user can view the email address, Subject, Status, Created Date and Error status. Administrators can also filter reports using various criteria such as From Date, To Date, receiver email and status. To navigate to the report, privileged users can navigate to Home->Reports->Email Logs:

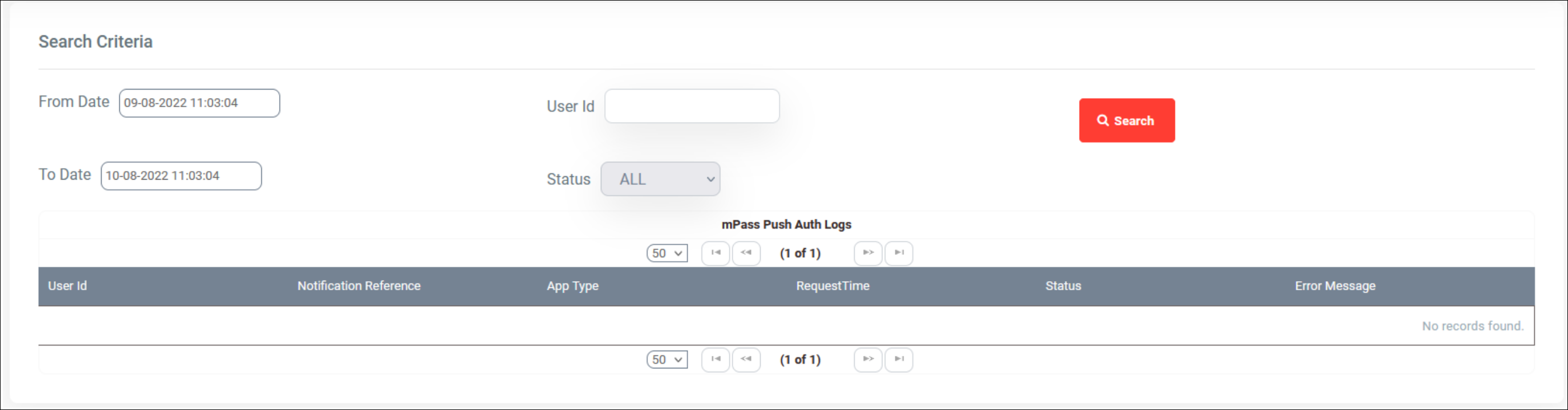

Push authentication logs

mPass administrators can view the push authentication requests sent to the users’ mobile phone using the Push authentication logs feature. Various details such as User Id, notification reference, the originated application name, the requested time, and the status of the push authentication notification.

Administrators can also filter reports using various criteria such as From Date, To Date, user name and status.

To navigate to the report, privileged users can navigate to Home->Reports->Push Authentication logs:

Backend System

Overview

The backend system section deals with mPass system level parameters and provides functionality to define backend systems such as Directory Servers, SMPP Servers etc. To view the defined backend systems, the privileged user should navigate to the following path: Home -> Backend System -> Backend System

System configuration

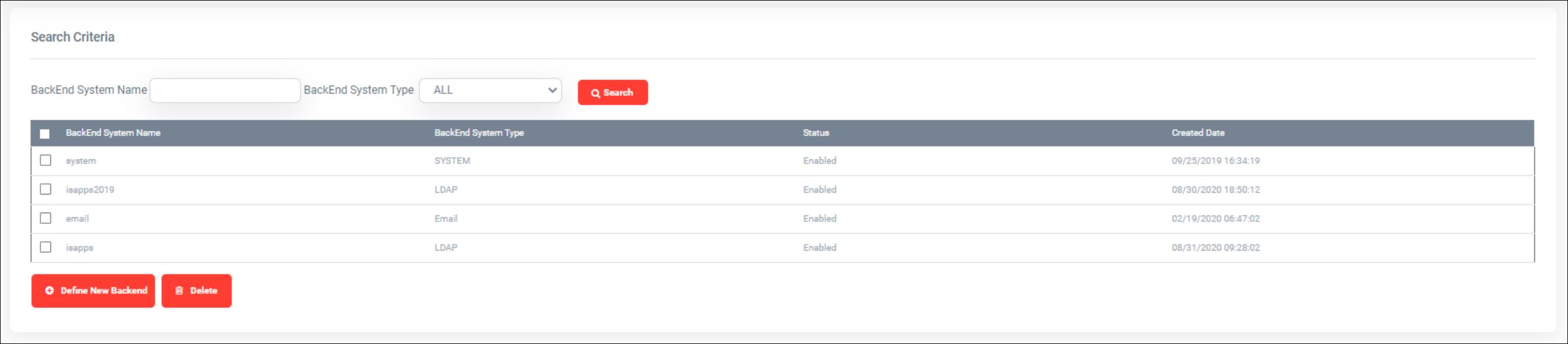

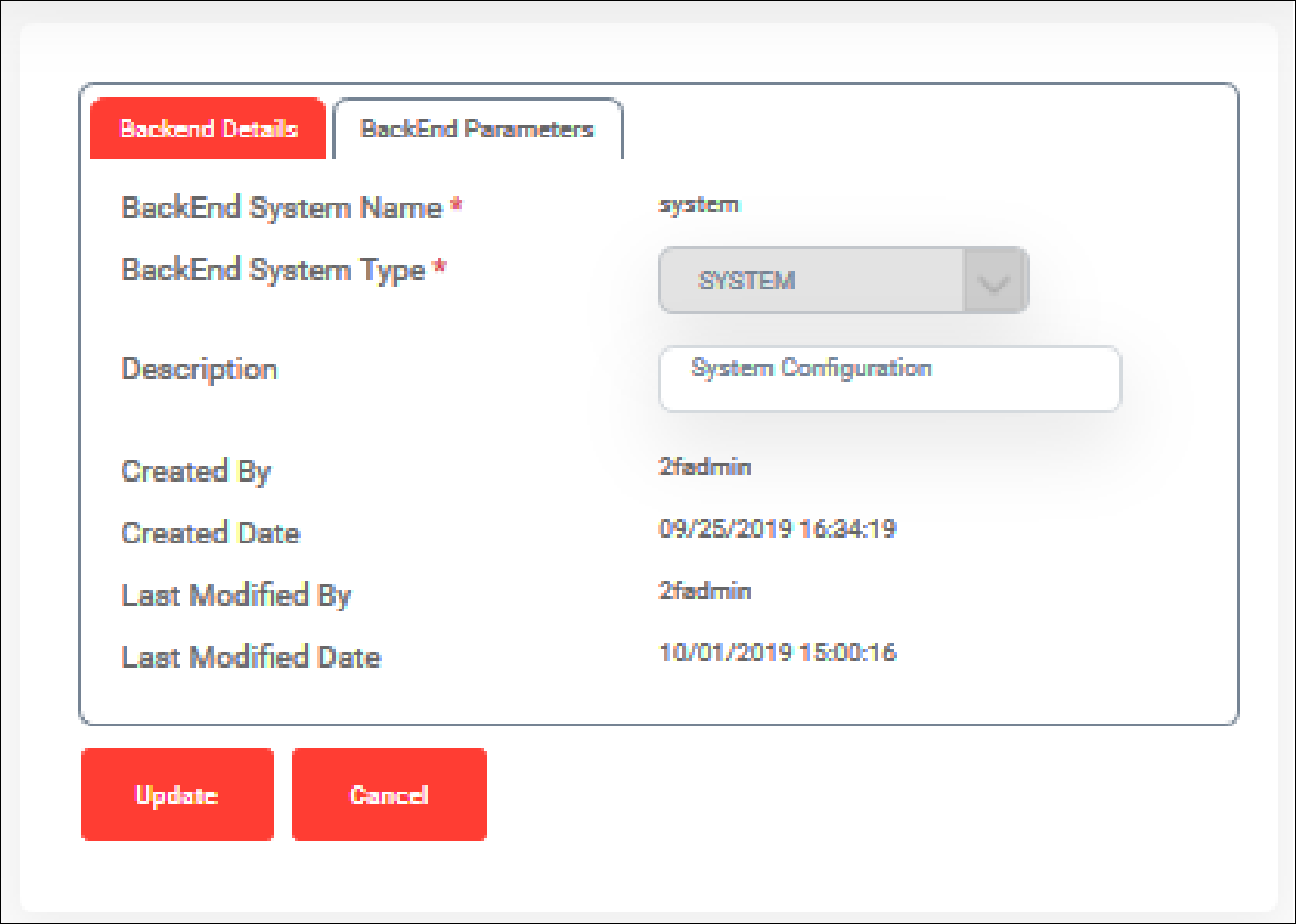

The Backend Systems list provides a default Backend System with name ‘system’, which cannot be deleted and is required for mPass to function. The ‘system’ parameters can be accessed by clicking on the Backend System Name ‘system’ and should be displayed as follows:

To view the ‘system’ parameters users need to click the BackEnd Parameters tab:

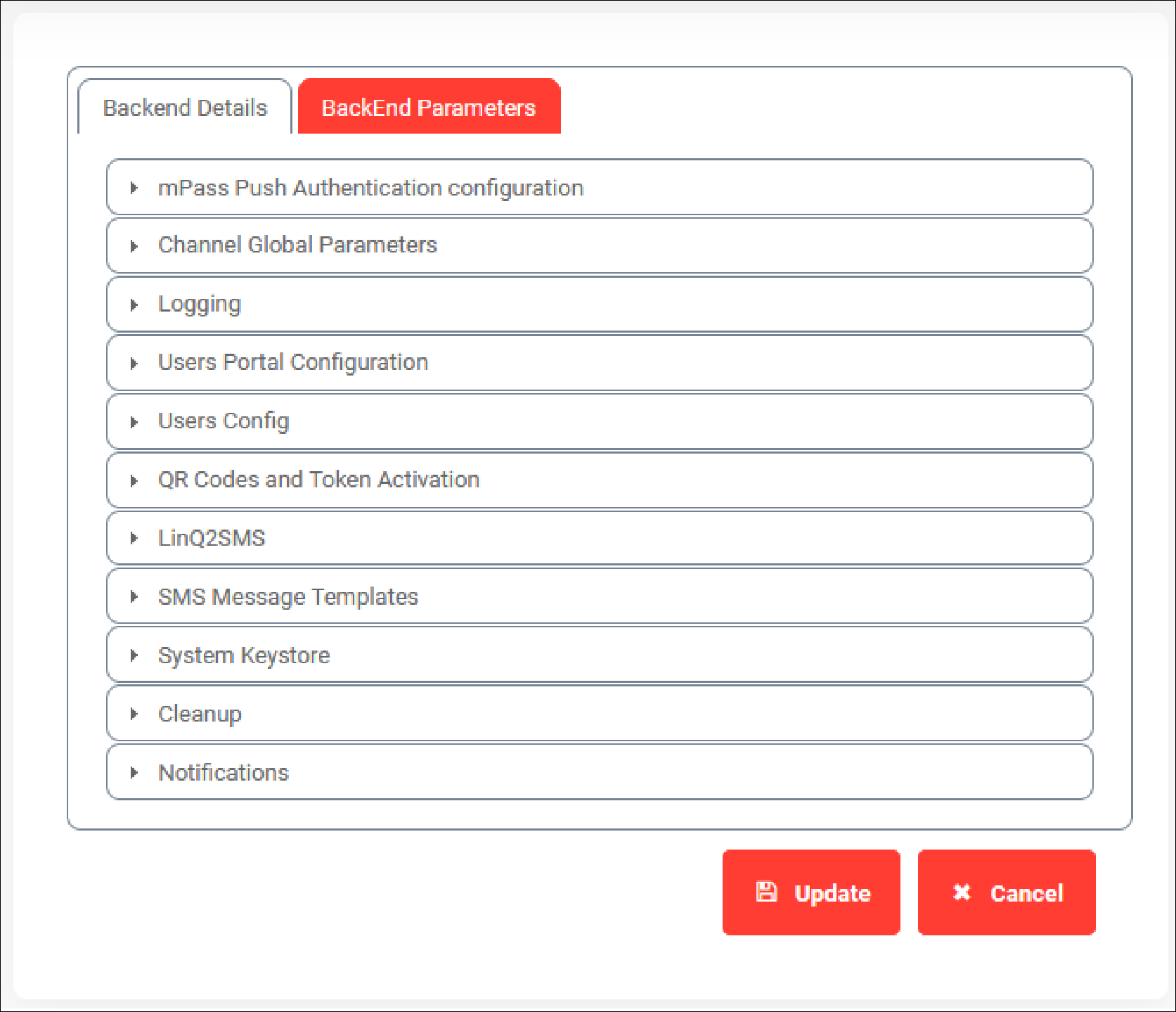

The ‘system’ backend contains the following sections containing parameters.

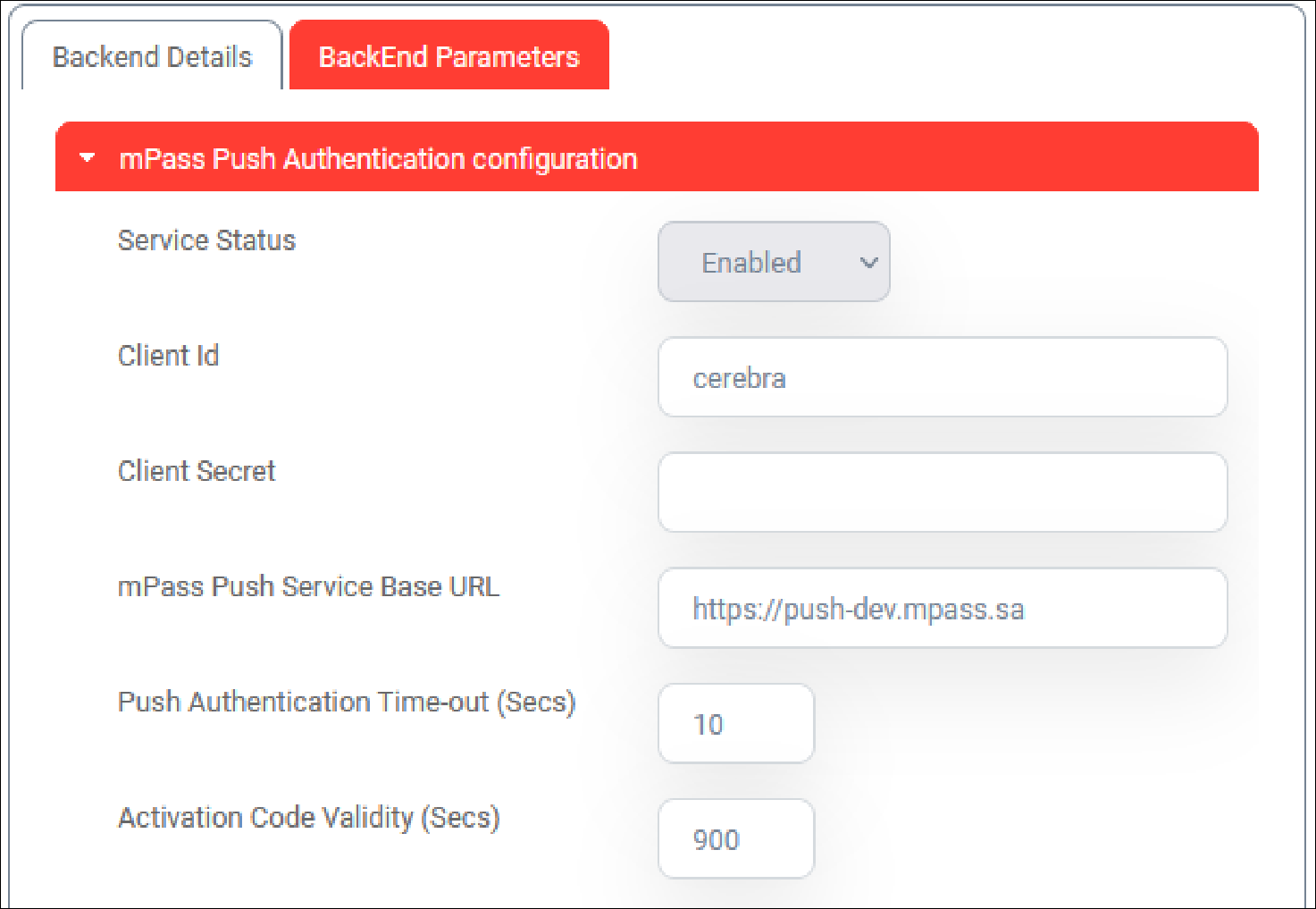

mPass Push Authentication configuration

Parameter Name	Description
Applies to the mPass push authentication services configuration
Service Status	Control to enable/disable mPass push authentication services. Disabling will not allow push authentication to users
Client Id	Unique client Id generated in the mPass Push online authentication service to identify the mPass setup. Cerebra PS team will provide the unique to an organization
Client Secret	Client secret to access the mPass push online services
mPass Push Service Base URL	Base URL of the mPass Push online authentication service
Push Authentication Time-out (Secs)	Maximum allowed time for the user to respond to push authentication notification
Activation Code Validity (Mins)	Maximum time allowed for the user to scan the QR code in the user portal

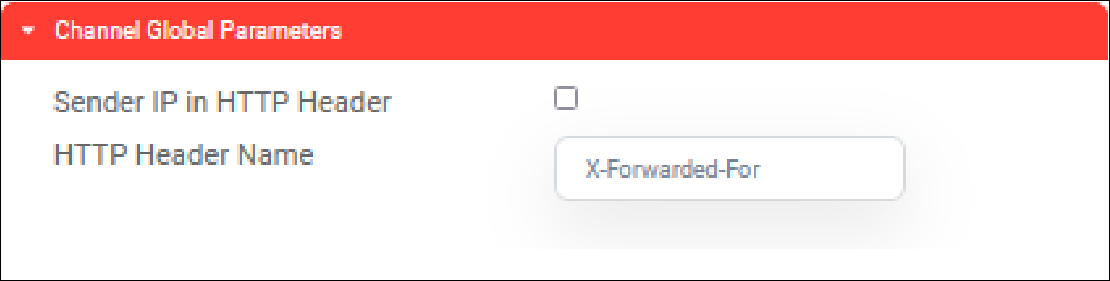

Channel Global Parameters

Parameter Name	Description
Applicable for HTTP based channels such as OWA/ADFS, WebServices, MNV Webservice and PKC webservice. Applies to the HTTP based Sender address (mPass service caller)
Sender IP in HTTP Header	Enabling it will cause the channels mentioned above to read Sender IP from HTTP Header name as configured below. HTTP based Channels should be configured to the IP address passed in this header as sender address
HTTP Header Name	All the HTTP based channels will read from the HTTP header configured here. Default value is X-Forwarded-For

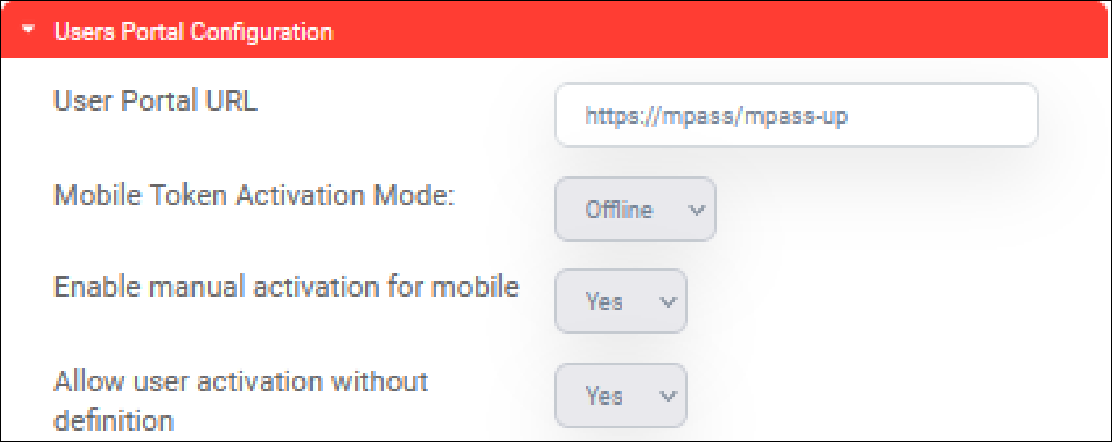

Users Portal Configuration

Parameter Name	Description
This section is used to control the mPass User portal configuration.
User Portal URL	mPass User portal URL address
Mobile Token Activation Mode:	Offline-mPass authenticator device need not connect to the mPass server during QR code scanning. Online- mPass authenticator device need to connect to the mPass server during QR code scanning.
Enable Manual Activation for mobile	Users can use either the QR code or can use the 16-character code. This will be useful for users not allowing camera access or phone does not have a camera.
Allow user activation without definition	Yes – User can use the mPass User portal to register themselves without requiring the administrator to define first. No- Not allowed for user register before the administrator defines it.

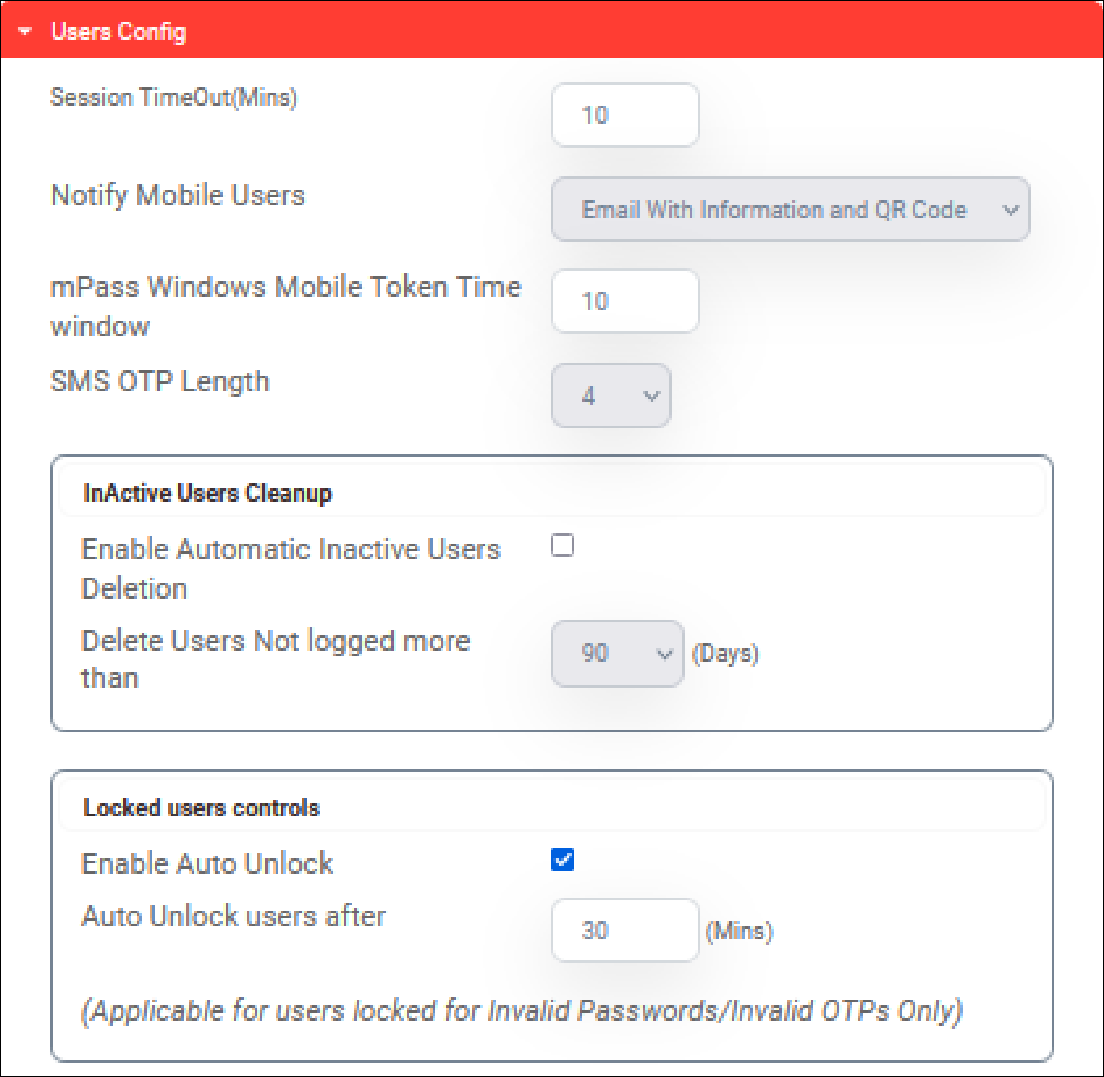

Users Config

Parameter Name	Description
This section contains the parameters to control the Web Browser session timeout of the administration portal and user portal
Session Time Out(Mins)	mPass administration portal & mPass User Portal browser session timeout
Notify Mobile Users	This configuration will be applied when defining new users. 1. Single user 2. Bulk Import No – User will not be notified. Email with Information Only- Send Email to user about instructions to download and activate the mPass mobile app and also the URL for user portal Email with Information and QR code- Send email to user about instructions to download and activate the mPass mobile app an also the QR code as an email attachment
mPass windows Mobile token time window	Applies to TOTP provided via mPass Windows Agent. This value specifies the allowed time window difference between the server time and user mobile time.
SMS OTP Length	OTP length for the OTP generated via SMS
Inactive Users Cleanup
Enable Automatic Inactive Users Deletion	Enable feature to delete inactive users
Delete Users Not logged more than	If enabled in above option, users who did not logged in the last 30/60/90/120 days will be deleted. A list of users who were deleted along with last logged date will be emailed to the administrator
Locked users controls
Enable Auto Unlock	Enable automatically unlocking of users who got locked due to Invalid passwords/Invalid OTPs
Auto Unlock users after	Value (in minutes) which specifies how the cutoff time after which users can be marked as unlocked

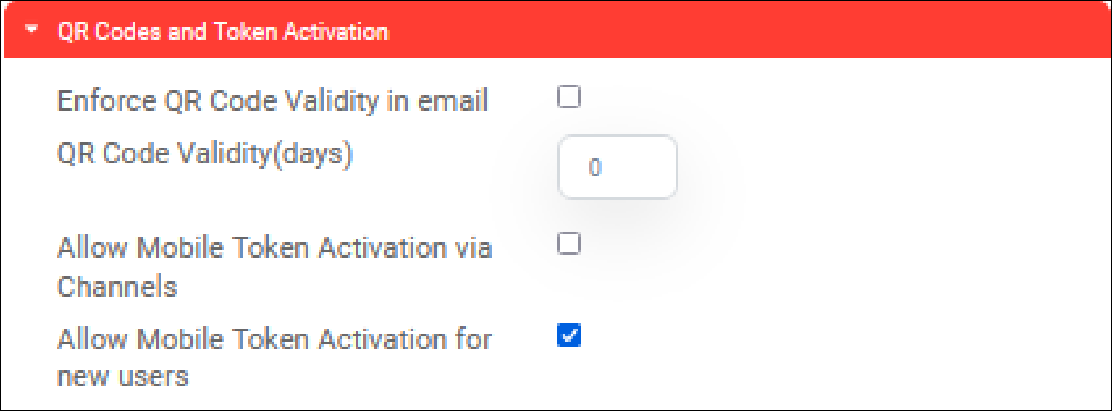

QR Codes and Token Activation

Parameter Name	Description
This section is used to control the mPass User portal configuration.
Enforce QR Code Validity in email	Sets a validity period for QR code sent via email
QR Code Validity(days)	QR code validity period in days
Allow Mobile Token Activation via Channels	If enabled, users can activate the mPass authenticator app via mPass agents(currently supports only OWA agent)
Allow Mobile Token Activation for new users	If enabled, users who are defined by the administrator/auto-defined/imported will be allowed QR activation via user portal

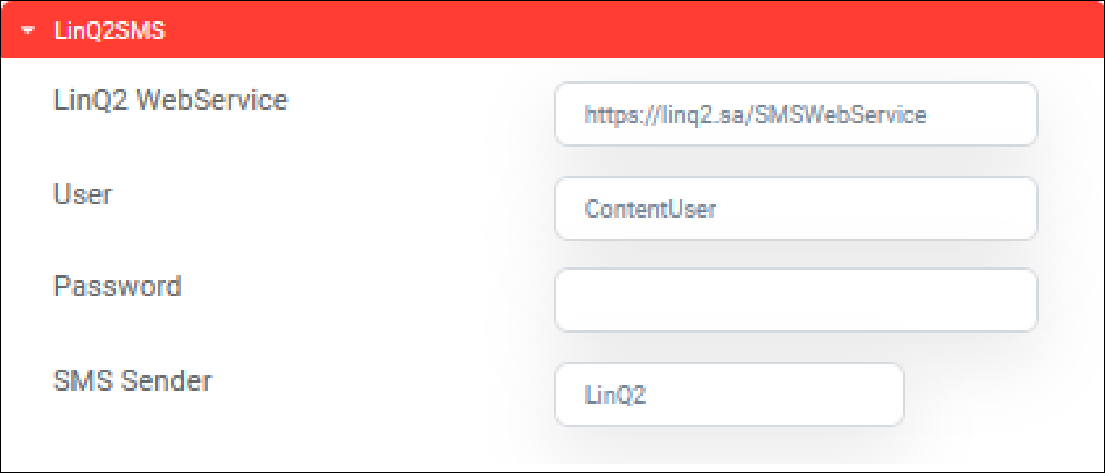

LinQ2SMS

Using this section, users can configure the Cerebra’s LinQ2 SMS Enterprise gateway details for delivering OTP as SMS.

Parameter Name	Description
LinQ2 WebService	URL of the LinQ2SMS SOAP Service
User	Username to access the SOAP Service
Password	Password for the above user
SMS Sender	SMS Sender

In the Web Service section field, administrators need to modify the hostname and specify the port if required.

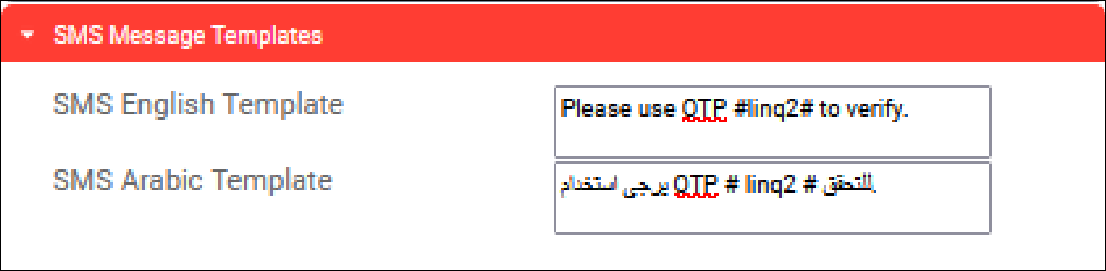

SMS Message Templates

Parameter Name	Description
SMS English Template	English Template for SMS. Applies to all channels OWA/RADIUS/ADFS/WebServices etc.
SMS Arabic Template	Arabic Template for SMS. Applies to all channels OWA/RADIUS/ADFS/WebServices etc.

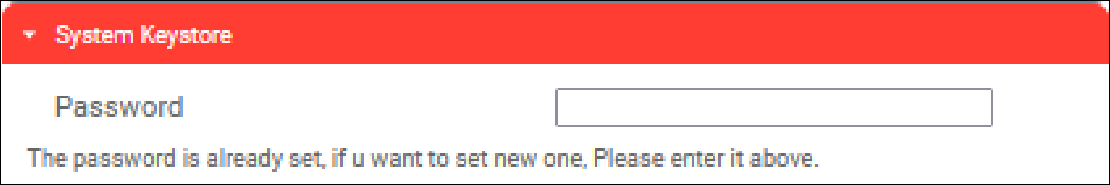

System Keystore

The mPass system uses keystore to store the encryption keys. Administrators if required can modify the keystore password as displayed below.

Parameter Name	Description
Password	Use this to change the password of mPass internal keystore

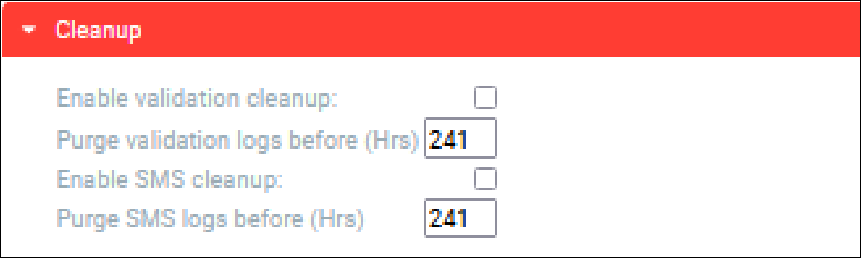

Cleanup

Enabling will purge the request logs from the system.

Parameter Name	Description
Enable validation cleanup	If enabled, authentication logs will be deleted
Purge validation logs before (Hrs)	Delete logs later than configured hours
Enable SMS cleanup	If enabled, SMS OTP messages will be deleted
Purge SMS logs before (Hrs)	Delete SMS OTP messages later than configured hours

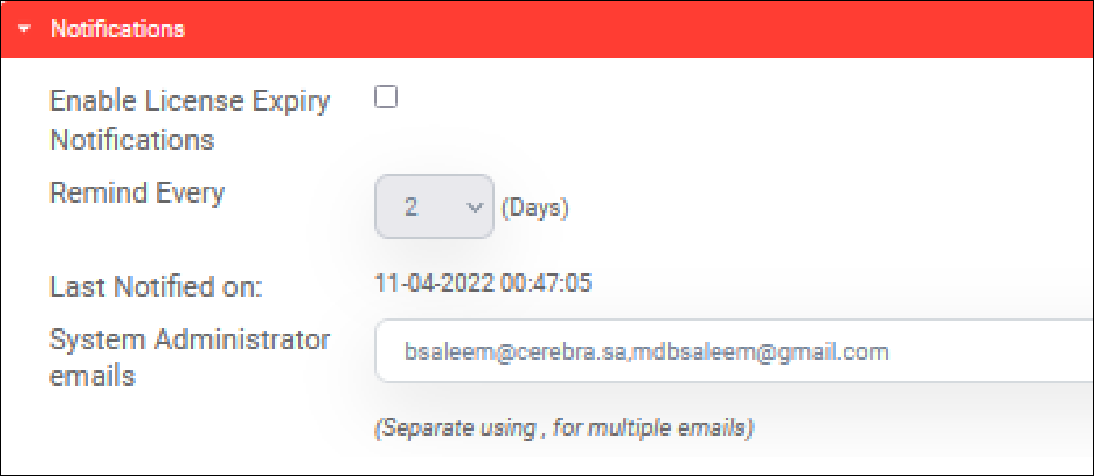

Notifications

Parameter Name	Description
Enable License Expiry Notifications	If enabled, mPass license expiry notifications will be sent to the configured System Administrator emails
Remind Every	Frequency of reminders to be sent
Last Notified on:	The last notified time
System Administrator emails	Comma separated values of administrators emails

Other Backend definitions

Apart from the ‘system’ configuration, privileged users can define a Backend system such as the following:

System Type	Description
Email Server	Email Server to send email for QR Codes to users
Directory Server	Enterprise Directory Server for authentication and retrieving mobile number information.
Simple HTTP Gateway	HTTP Gateway to send SMS via simple parameters

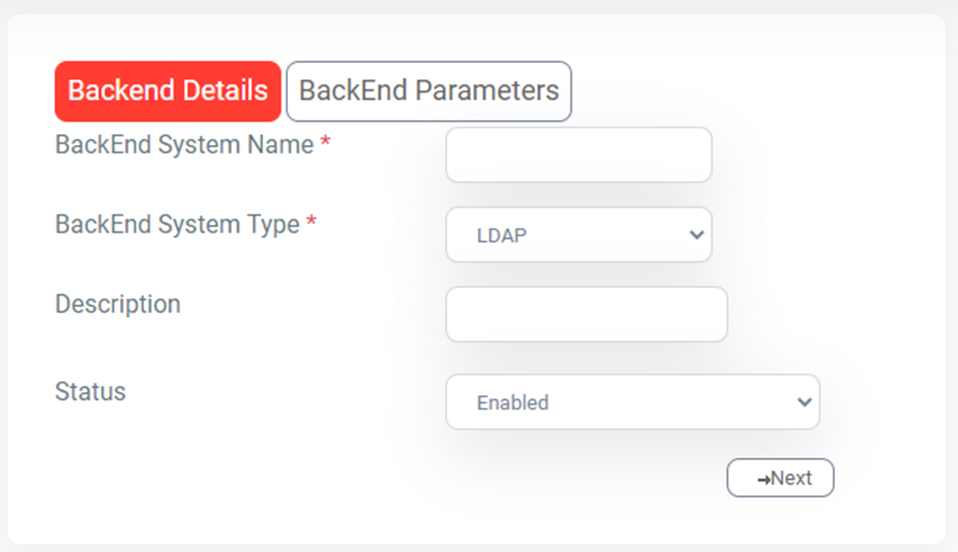

To define a new backend, privileged users should click on the ‘Add’ button in the Backend System list page. A new form wizard should be displayed as follows:

Selecting the appropriate Backend System Type will display the appropriate forms

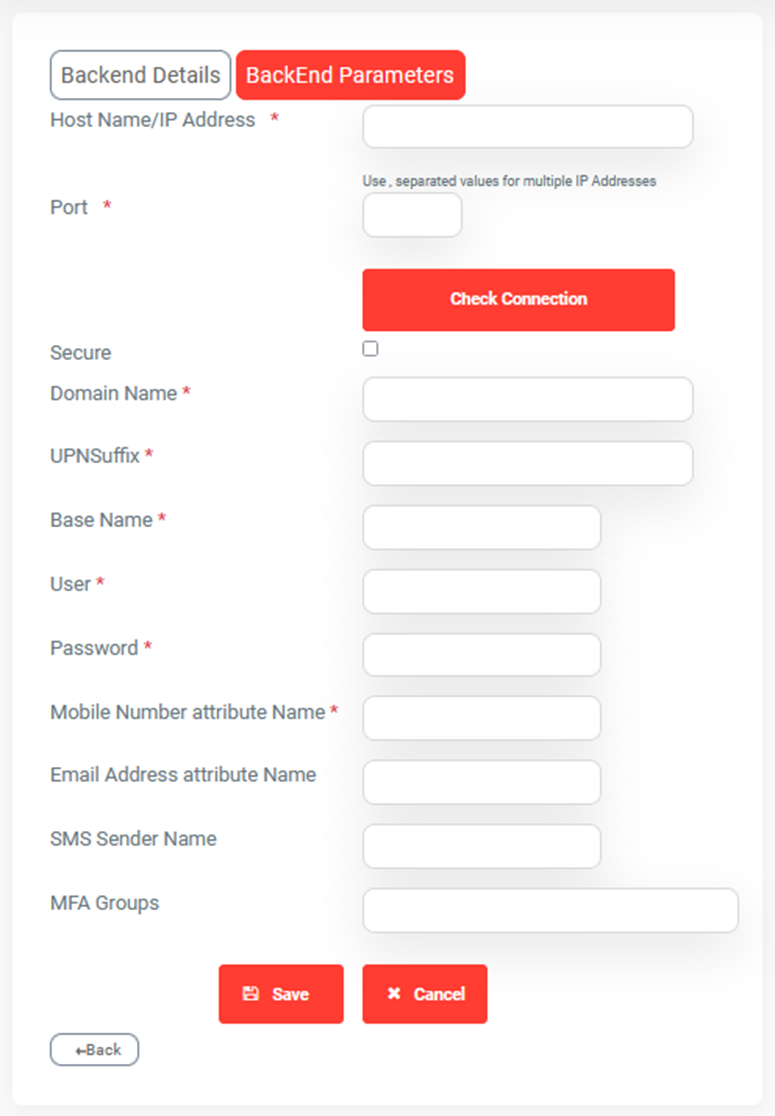

For Active Directory Server

This backend is used to define the Active directory for authentication. This configuration is used in the following scenarios:

To verify username and password of the user (RADIUS configurations)
To read mobile number of the user before sending OTP via SMS
To read email address of the user before sending OTP via Email.

Parameter Name	Description
HostName/IP Address	Hostname or IP address of the Active Directory. Multiple IP addresses can be specified for multiple servers
Port	LDAP/LDAPS Port number
Domain Name	Active Directory Domain name
UPN Suffix	UPN suffix (should be same as Domain Name if no UPN suffix)
Base Name	English Template for SMS. Applies to all channels OWA/RADIUS/ADFS/WebServices etc.
User	Service account name to read mobile number or other attributes of user
Password	Service account password
Mobile number field name	User attribute name of the mobile number field in Active directory
SMS Sender Name	The SMS Sender Name for this Active directory. If not set, the name will be used from channel configuration/system configuration
MFA Groups	Full OU name to enable 2FA. Only users belonging to the defined groups will be applied 2FA others rejected. For multiple groups please use comma separated.

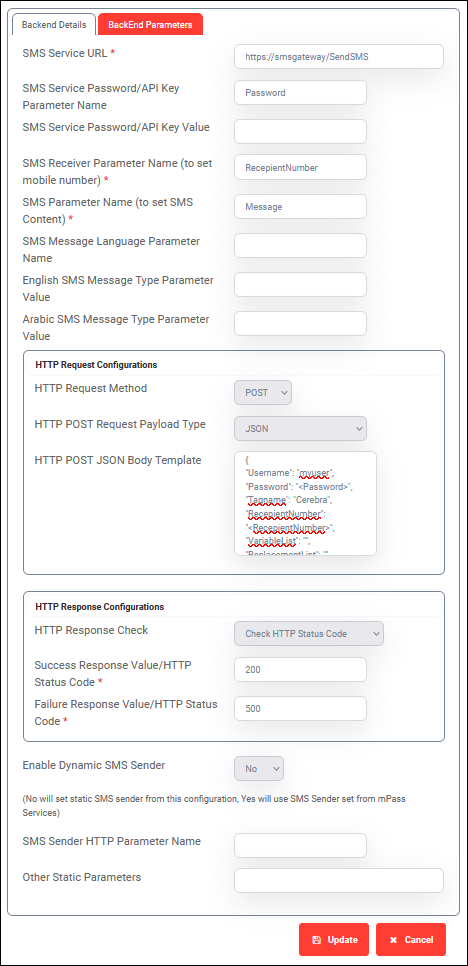

For Simple HTTP Gateway

This configuration will be required if the system use HTTP based SMS gateway.

Parameter Name	Description
SMS Service URL	Base URL of the SMS provider/Base URL including static parameters
SMS Service Password/API Key Parameter Name	If the service requires a password this parameter specifies the field name of the password If Request Type is GET, this parameter will be set as HTTP URL parameter name. If Request Type is POST with Payload Type x-www-form-urlencoded, the parameter name will be sent in the POST body If Request Type is POST with Payload Type JSON, the JSON tag name for password should be specified here.
SMS Service Password/API Key Value	If the service requires a password this parameter specifies the value of the password (see above for field name details) If Request Type is GET, this parameter will be set as HTTP URL parameter value for above parameter name. If Request Type is POST with Payload Type x-www-form-urlencoded, the parameter value will be sent in the POST body for the above parameter name If Request Type is POST with Payload Type JSON, this value will be set for the JSON tag name as configured above
SMS Receiver Parameter Name (to set mobile number)	This parameter specifies the request parameter name for setting the mobile number. If Request Type is GET, this parameter will be set as HTTP URL parameter name. If Request Type is POST with Payload Type x-www-form-urlencoded, the parameter name will be sent in the POST body. If Request Type is POST with Payload Type JSON, the JSON tag name for mobile number should be specified here.
SMS Parameter Name (to set SMS Content)	This parameter specifies the request parameter name for setting the SMS content. If Request Type is GET, this parameter will be set as HTTP URL parameter name. If Request Type is POST with Payload Type x-www-form-urlencoded, the parameter name will be sent in the POST body. If Request Type is POST with Payload Type JSON, the JSON tag name for SMS content should be specified here.
SMS Message Language Parameter Name	This parameter specifies the request parameter name for setting the language type. If Request Type is GET, this parameter will be set as HTTP URL parameter name. If Request Type is POST with Payload Type x-www-form-urlencoded, the parameter name will be sent in the POST body. If Request Type is POST with Payload Type JSON, the JSON tag name for language type should be specified here.
English SMS Message Type Parameter Value	This parameter specifies the value to set for English messages in the above parameter field
Arabic SMS Message Type Parameter Value	This parameter specifies the value to set for Arabic messages in the above parameter field
HTTP Request Configurations
Request Type	Whether the HTTP request should be GET / POST method
HTTP POST Request Payload Type	Payload type for HTTP POST requests
HTTP POST JSON Body Template	The template for JSON, For HTTP POST requests with payload type JSON. Can contain static and dynamic values. Dynamic values normally include: Passwords SMS recipient SMS message Language Eg: { "Username": "myuser", "Password": "<Password>", "Tagname": "Cerebra", "RecepientNumber": "<RecepientNumber>", "VariableList": "", "ReplacementList": "", "Message": "<Message>", "SendDateTime": 0, "EnableDR": false } In the above JSON, the password, the recipient number and the SMS content is populated dynamically.
HTTP Response Configurations
HTTP Response Check	Specifies the mechanism to check the SMS was sent successfully or not sent
Success Response Value/HTTP Status Code	If the above field configured to check HTTP status code, the HTTP status code should be specified here for success messages If the above field configured to check HTTP response body, the HTTP response body for success should be specified here.
Failure Response Value/HTTP Status Code	If the HTTP Response Check field configured to check HTTP status code, the HTTP status code should be specified here for failure messages If the above field configured to check HTTP response body, the HTTP response body for failure should be specified here.
Enable Dynamic SMS Sender	If enabled, the SMS sender will be set as set in the mPass channels, else will be set as configured in parameter below
SMS Sender HTTP Parameter Name	Default SMS sender value
Other static parameters	To add any static name=value pairs which will be appended to the URL during GET and Post Request which the SMS vendor requires it. This can be Sender Name, Application identifier for tracking and reporting

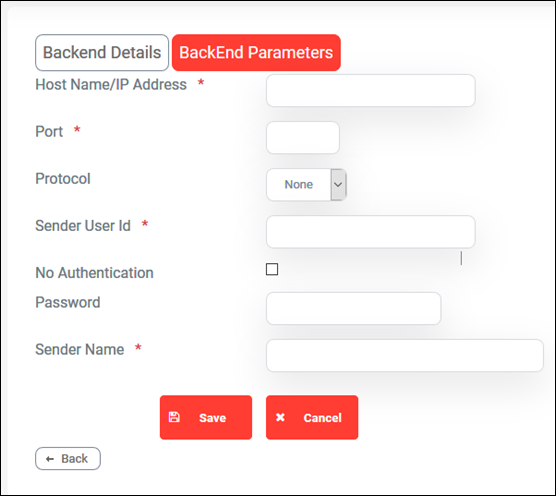

Email Server

This backend configuration will be used to send in the following scenarios:

Send Invitation emails to users about mPass token activation with QR code/User Portal URL.
Send OTP via email.

Parameter Name	Description
Host Name/IP	Host name or IP of the email server
Port	SMTP port
Protocol	None- Just TCP/IP TLS- Transport Layer Security SSL- Secure Sockets Layer security
Sender User Id	Sender Email address for the emails
No Authentication	This option should be selected when sending emails does not require any password
Password	Password of the Sender User Id
Sender Name	Sender Name to be included in Email

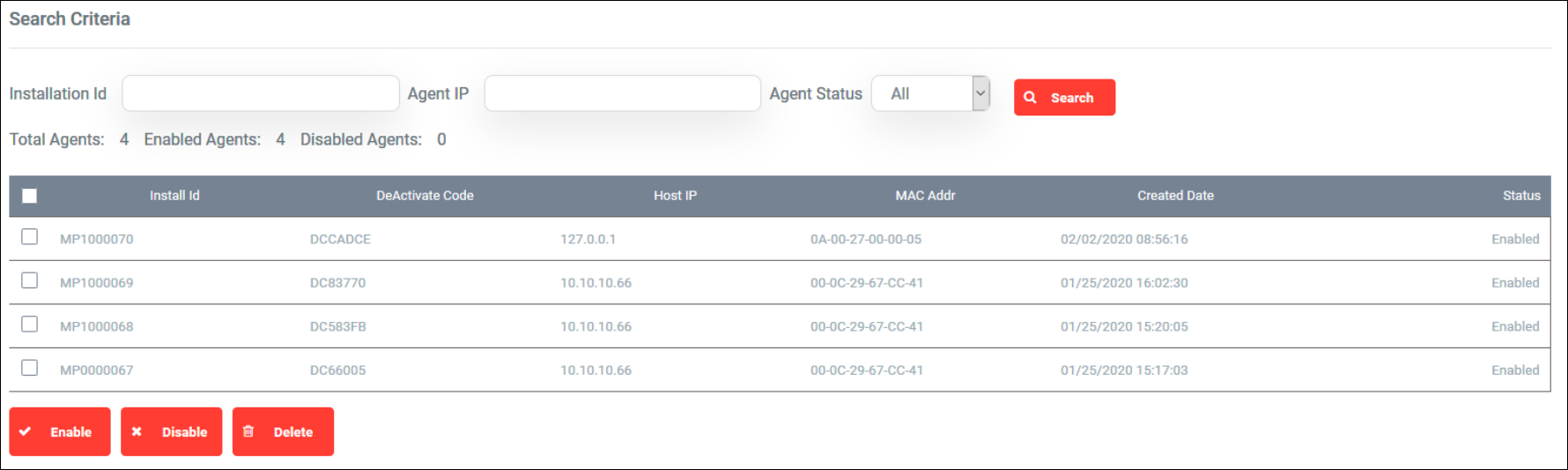

Sometimes due to network connection issues or any other issues between the mPass windows agent installed PC/server and the mPass server, the user might not be able to login to the system. The purpose of this feature is to disable the mPass Windows Agent. This feature is used to disable mPass windows agents and also to provide the Deactivation codes to remote users who might have installed it in online/offline mode. Privileged users can navigate using the following path: Home -> Backend System -> Backend System

Following is a brief description about each parameter:

Parameter Name	Description
Install Id	Unique ID generated for mPass agent installation in the organization
DeActivate Code	Deactivation code which should be used to deactivate the mPass agent in the OTP box.
Host IP	The host IP address of the mPass installed windows agent.
MAC Addr	The MAC address of the network card for the remote system.
Created Date	The date the mPass agent was activated on the remote system
Status	Enable/Disabled state

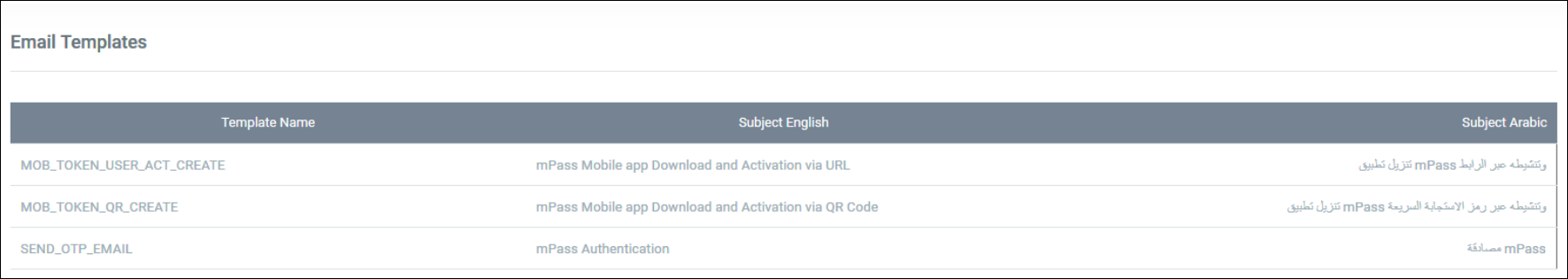

Email Template

mPass uses templates to send various emails to users in the following cases:

New-User creation (Information email without QR Code)
New-User creation (Information email with QR Code)
OTP via email

Privileged users can update these templates and customize accordingly. The following path can be used to navigate the same.

Home -> Backend System -> Email Templates

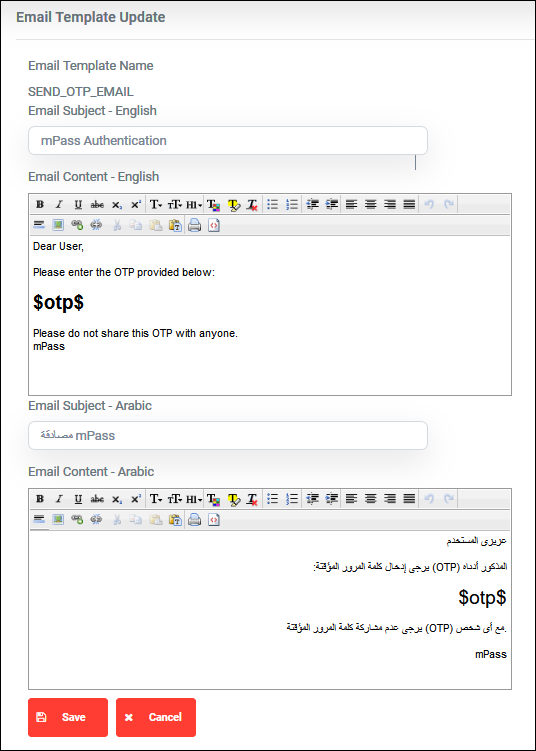

To modify any template, click on the Template Name of the required template.

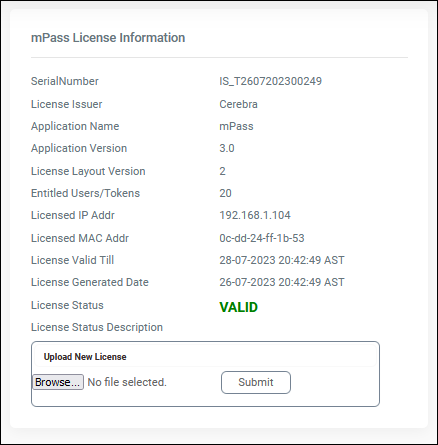

License Management

mPass services work based on the license validity. License is issued per server based on the following parameters:

IP Address of the server
Network MAC address for the above IP address

Cerebra provides a license.dat file which should be uploaded using the web interface at Home->Backend System->License Management

GENERAL MAINTENANCE

Application Backup

The recommended method is to back up the entire OS image and the recommended period is every week. If the OS image backup is not possible, the minimum backup required is to back up the JBOSS_HOME directory (usually at C:\Program Files\ mPass\ wildfly-17.0.0.Final) including sub- directories.

Database Backup

The database backup is critical to business continuity in case of disaster. The recommended backup is real time backup if possible or else the administrators should configure a daily backup plan.

Re-starting mPass Windows Service

To restart mPass Windows Service mPass for any reason, the service should be first stopped first and start again

Note: Please don’t click restart button

Re-booting the Servers

A typical setup of mPass is installed on 2 servers: Application Server and Database Server. For cases where Re-booting is required, the order of the re-booting is important to note as the application server relies on the Database server to load system parameters.

Stopping order

1. Application Server windows service ‘mPass’

2. Database Server

Starting order

1. Database Server

2. Application Server windows service ‘mPass’ (automatically starts during system reboot)

General Incidents and Troubleshooting

Users unable to authenticate via VPN

Check connectivity between VPN system and MPass
Check connectivity between MPass and Active Directory
Check connectivity between MPass and Database Server
Check connectivity between MPass and SMS Gateway (if applicable)
Check ‘Request Logs’ from MPass administration portal for error message
Send server.log file from ‘C:\Program Files\ mpass\ wildfly-17.0.0.Final\standalone\log’ from server to support

OTP Validation Failure

Check ‘Request Logs’ from MPass administration portal for error message
Check if OTP is expired (as per policy parameter SMS OTP expiry time)
If mobile token, check whether the token assigned to user and in system has the same serial number
Send server.log file from ‘C:\Program Files\mpass\ wildfly-17.0.0.Final \standalone\log’ from server to support

SMS OTP Not Receiving

Check connectivity between MPass and SMS Gateway (if applicable)
Check whether SMS quota is expired/completed
Check ‘Request Logs’ from MPass administration portal for error message
Send server.log file from ‘C:\Program Files\mPass\ wildfly-17.0.0.Final\standalone\log’ from server to support

mPass Server Not running

Check whether windows service ‘mpass is running from Windows-services window.
Check connectivity between mpass and Database Server
Check whether database credentials are valid
Check whether windows service ‘mpass service account credentials are valid(if applicable)
Send server.log file from ‘C:\Program Files\mpass\wildfly-17.0.0.Final\standalone\log’ from server to support

Appendix

Abbreviation	Description
RADIUS	Remote Authentication Dial-In User Service (RADIUS) is a networking protocol that provides centralized Authentication, Authorization, and Accounting (AAA or Triple A) management for users who connect and use a network service.
OTP	One Time Password
MFA	Multi-Factor authentications
REST	Representational State Transfer
PO	Purchase Order

Related Articles
mPass MFA High Level Design
Introduction The mPass authentication server (AS) is an OATH compliant comprehensive solution for enabling Multi-Factor Authentication (MFA) for enterprise applications such as VPN Systems, Outlook Web Access, Active Directory Federation Services ...
mPass MFA User Guide
Introduction The mPass authentication server is an OATH compliant comprehensive solution for enabling multi-factor authentication for enterprise applications such as VPN Systems, Outlook Web Access, Active Directory Federation Services, Windows/Linux ...
What is mPass MFA?
Introduction The mPass MFA is an OATH compliant comprehensive solution for enabling Multi-Factor Authentication (MFA) for enterprise applications such as VPN Systems, Outlook Web Access, Active Directory Federation Services (ADFS), Windows/Linux ...
mPass MFA Mobile Number Verification
Introduction mPass is an OATH compliant comprehensive solution for enabling Multi Factor authentication for enterprise applications. mPass provides HTTP based web services for enterprise applications to verify mobile numbers of their users by means ...
mPass MFA Install Windows Agent
Introduction The mPass authentication server is an OATH compliant comprehensive solution for enabling multi-factor authentication for enterprise applications such as VPN Systems, Outlook Web Access, Active Directory Federation Services, Windows/Linux ...
