1. Introduction

This interface allows sending requests to LinQ2 through Excel file either “.xls” or “.xslx” formats. Linq2 application will read this file from already defined source directory .In case of successful processing this file will be move to destination directory. Otherwise it will move in to error directory. User can find error and description from log monitoring section.Select the organization by clicking on the required organization list displayed in the left. The selected organization will be highlighted in red color. To edit the organization details click on the Organization ID.



2. Configuration

Authorized user can configure Excel File request parameter setting from configuration >LinQ2 resources > File - Show List > LinQ2 page. Form this page authorized user can define source, destination, error and pending folder path.

Ref: - Screen 1 – LinQ2 File backend management_1.

Ref: - Screen 2 – LinQ2 File backend management_2.

Ref: - Screen 3 – LinQ2 Define files backend parameters

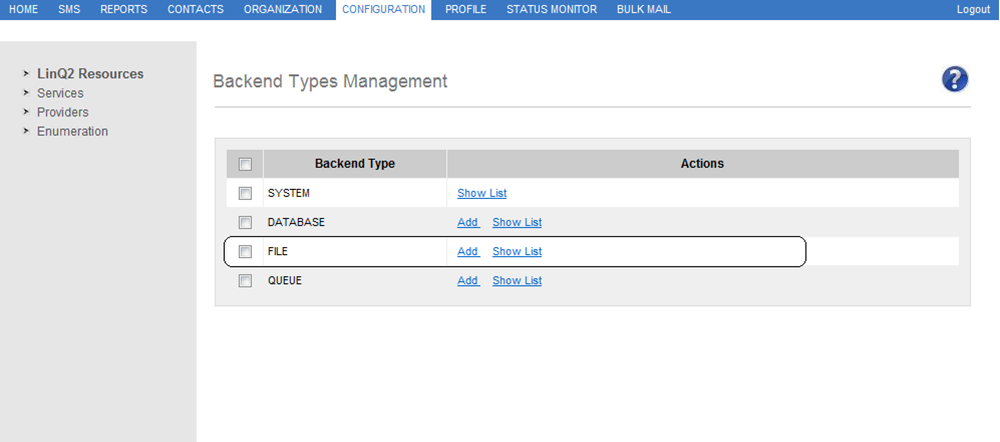

 Screen 1 – LinQ2 File backend management_1

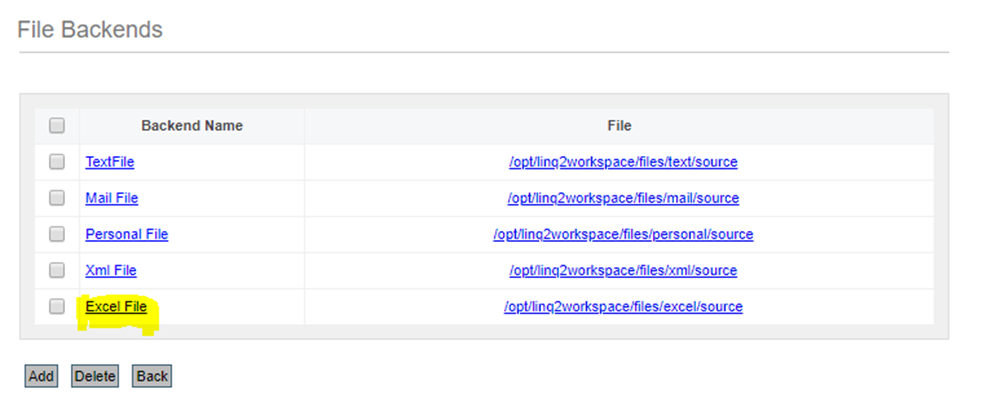

 Screen 2 – LinQ2 File backend management_2

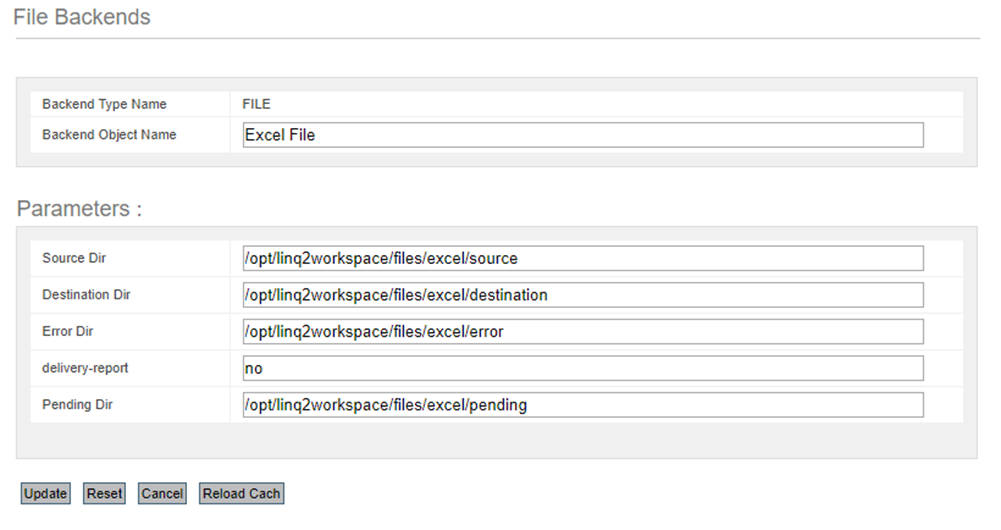

Screen 3 – LinQ2 Define file backend parameters





3. Monitoring and Control

Excel File handler service is available in services list. Authorized user can login in to LinQ2 system and can monitor the current status of Excel File handler service and recent errors and warning from status monitor section. User can also start and stop the Excel file handler service from this section.

Ref: - Screen 4 – LinQ2 Excel File handler Service Status Monitoring and Control

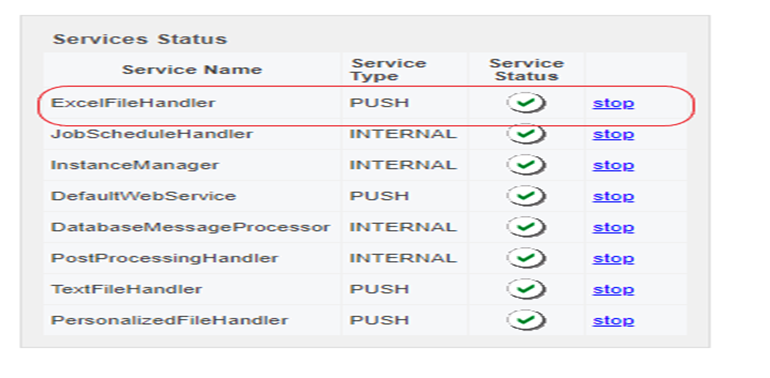

 Screen 4 – LinQ2 Excel File handler Service Status Monitoring and Control





4. Constraints

  1. The file name should contain an underscore “_”.
  2. The first column format should be number without and decimal places.
  3. The very first cell of the Excel sheet must contain the message to be sent.
  4. The message may contain any number of parameters in the format ${param_name}. These parameter values must be listed starting from the second column after the mobile that is in the first column.
  5. Each parameter in the message should match the value in the corresponding column in the same order.



5. Excel File Test Cases:

For excel file upload and sample excel sheet, refer the following screens.

Ref: - Screen 5 – LinQ2 Excel File handler when source directory is selected as “Excel File”

Ref: - Screen 6 – LinQ2 Excel File handler sample excel file with parameters

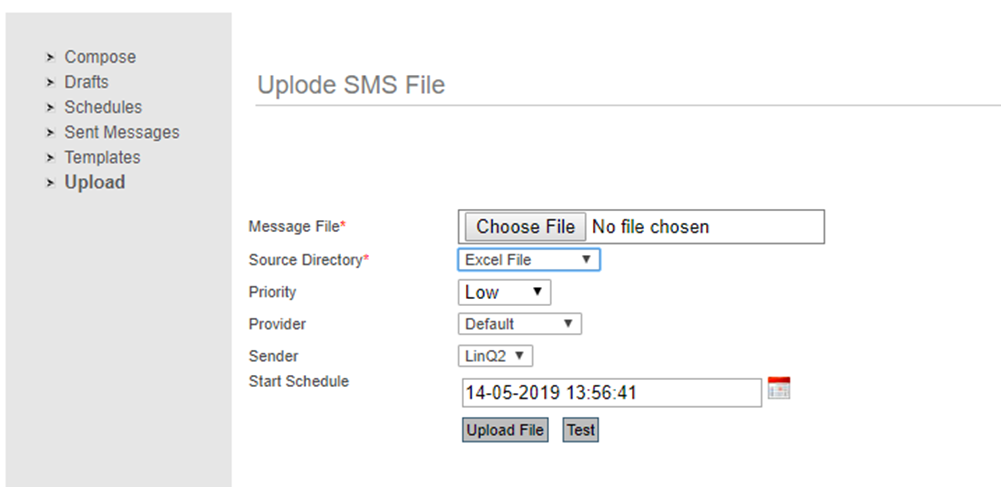

Screen 5 – LinQ2 Excel File handler when source directory is selected as “Excel File”

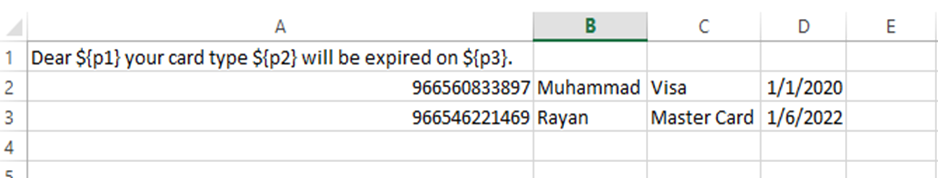

Screen 6 – LinQ2 Excel File handler sample excel file with parameters





5.2.1 Excel File with parameters

Interface

Excel File Service

Pre-conditions



  • Validate file name (ending with .xls or xlsx and having an underscore “_” in the file name.
  • Putting files in Source folder.
  • Validate file format
    • The messages should in the first sheet of the excel file.
    • The message in the first line (first row and first column)
    • Each mobile number in the first column starting from the second row
    • The message contains the parameter place holders in the format ${param_name} and the values are provided in the each row starting from the second column in order.



Request

Example:

    File name:         Test_.xlsx

   File content:

                                Dear ${name} your account will expired after 6 days

                                   566123431                   Muhammad

                                   566123432                Rayan

                                   566123433                Iqbal







Expected Result



  • File will be moved to destination folder.
  • Three message in file should be picked by linQ2 system
  • If there are any errors then:
  • The file should be moved to error folder
  • No message picked.











Actual Result











5.2.2 Excel File without any parameters

Interface

Excel File Service

Pre-conditions



  • Validate file name (ending with .xls or xlsx and having an underscore “_” in the file name.
  • Putting files in Source folder.
  • Validate file format
    • The message in the first line (first row and first column).
    • The messages should in the first sheet of the excel file.

Each mobile number in the first column starting from the second row

Request

Example:

    File name:         Test_.xlsx

   File content:

                                Dear customer your account will expired after 6 days

                                566123431

                                566123432

                                566123433





Expected Result



  • File will be moved to destination folder.
  • Three message in file should be picked by linQ2 system
  • If there are any errors then:
  • The file should be moved to error folder
  • No message picked.











Actual Result

















5.2.3 Excel File Test One Message



Interface

Excel File Service

Pre-conditions



  • Validate file name (ending with .xls or xlsx and having an underscore “_” in the file name.
  • Putting files in Source folder.
  • Validate file format
    • The message in the first line (first row and first column)
    • The messages should in the first sheet of the excel file.
    • Each mobile number in the first column starting from the second row
    • If the message contains parameter place holders in the format ${param_name} then the values are provided in the each row starting from the second column in order.



Request

Example:

    File name:         Test_.xlsx

   File content:

                                Dear ${name} your account will expired after 6 days

                                   566123431                   Muhammad

                                   566123432                Rayan

                                   566123433                Iqbal



Expected Result



  • File will be moved to destination folder.
  • Only the first message in file should be picked by linQ2 system and sent to the mobile number of the user that uploaded the file for testing.
  • If there are any errors then:
  • The file should be moved to error folder
  • No message picked.











Actual Result
