Infoshield ADFS ( SAML) Integration Guide

Infoshield ADFS ( SAML) Integration Guide

Cover letter

This guide for integrating auth of ADFS Active Directory users to Infoshield. This document outlines the steps and considerations for a seamless integration process.



Note :

This integration only initiates authentication and doesn't automatically withdraw users. Therefore, it must be uploaded users manually beforehand. Subsequently, their login method will be converted to Single Sign-On (SSO) as part of the process.



SAML Authentication - Requirements and Steps:





·         Get IDP (ADFS) metadata XML OR public XML URL

          Helpful videos to this step part1 part2 for ADFS team



By following these steps, you will successfully integrate the metadata from the IDP ADFS                               into the LMS system :

1. Log in to the LMS dashboard as admin.

2. Navigate to the "Users" section.

3. Select "ADFS / SAML2" from the options.

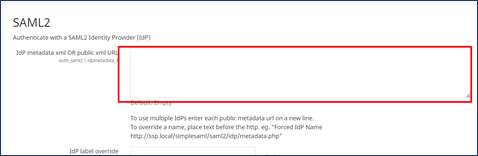

4 Paste the metadata into the designated field.

A screenshot of a computer Description automatically generated

6. Save the changes



·         SSL keys for Infoshield data

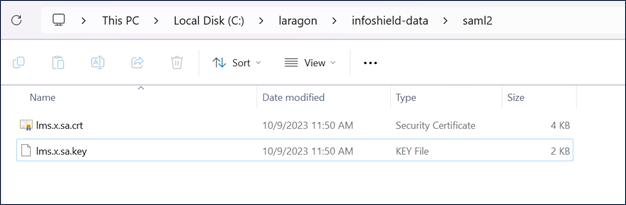

Place the certificate and key of the web domain in the specified path within the source code:

    C:\laragon\infoshield-data\saml2



A screenshot of a computer Description automatically generated









·        Export LMS (Infoshield) metadata for the IDP (ADFS) team:



After completing the initial steps, proceed to the LMS Infoshield platform to download the    Infoshield metadata

Dashboard > users > SAML / ADFS then appears download filed here after putting ADFS metadata

A screenshot of a computer Description automatically generated

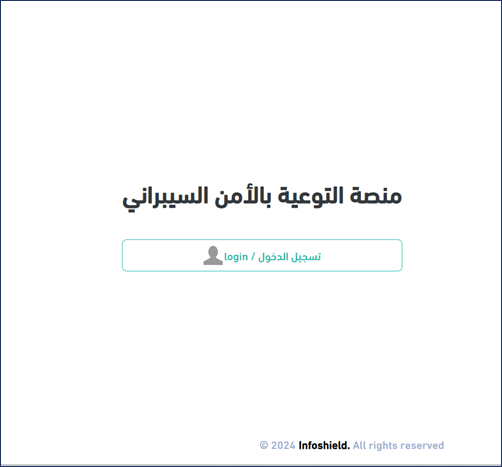

 After completing the outlined steps, the SAML authentication process will be active on the Login page. Users will be able to authenticate using SAML credentials for accessing the system.



A screenshot of a computer Description automatically generated
